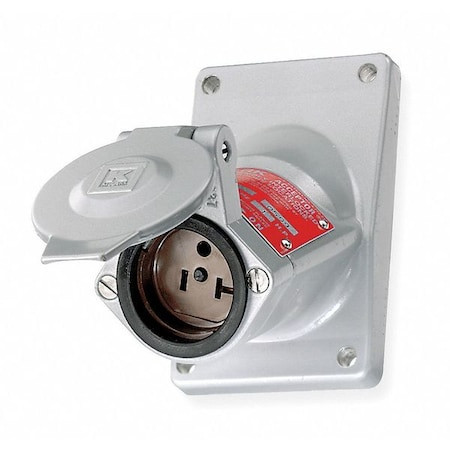

20A Single Explosion Proof Receptacle 120 VAC 5-20R - UGRA20231

20A Single Explosion Proof Receptacle 120 VAC 5-20R - UGRA20231

Hubbell
SKU:
UGRA20231
|
UPC:
783585412603
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Receptacle, Connection Orientation Straight, Cover Type Flip-Up Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Silver, Housing Material Steel, Mount Type Surface, NEMA Enclosure Rating 3R, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, AFCI No, Flange Shape Rectangular
Additional Information
Country of Origin:
United States
Item:
Receptacle
Number of Poles:
2
Number of Wires:
3
NEMA Type:
5-20R
Standards:
UL 498
Amps:
20 A
Voltage:
120 V AC
Description/Special Features:
The Base is 4.62 in High and 3 Wide
Phase:
Single
Color:
Metallic
Wiring Method:
Back
Number of Gangs:
1
Width:
3 in
Includes Mounting Hardware:
Yes
AFCI:
No
Wire Connection Type:
Screw Terminals
GFCI:
No
Flange Shape:
Rectangular
Current Rating:
20 A
Grounding:
Grounded
Mount Type:
Surface
Cover Type:
Flip-Up Cover
NEMA Receptacle Configuration:
5-20R
Surge Protection:
No
Polarized:
Yes
Receptacle Type:
Single
Maximum Wire Size:
10 AWG
Minimum Wire Size:
14 AWG
Flange Type:
Flanged
Voltage Rating:
125V AC
Housing Material:
Steel
Includes:
Mounting Hardware
Minimum Operating Temperature:
-40 Degrees F
Maximum Operating Temperature:
167 Degrees F
Shrouded:
No
Connection Orientation:
Straight
UL 94 Flammability Rating:
V-2
For Location:
Indoor
Grade:
Federal Specification
Housing Color:
Silver
NEMA Enclosure Rating:
3R
Temperature Rise:
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Ground Screw Material:
#8-32 Brass, Multiple Drive (Green)
Type:
2 Pole, 3 Wire, Grounding
Base Material:
Phenolic
Device Color:
Metallic
Power Contacts Material:
.037 (.9) Brass - Ni Plated"
Terminal Identification:
Terminals identified in accordance with UL 498 and CSA
Enhancement:
Class 2, Groups F,G
Flammability:
UL 94 V2 or better., UL 94 V2 or better
Rating:
20A, 125V
Face Shape:
Traditional
Explosion Proof Type:
Receptacle
Operating Temperatures:
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screw Material:
#8-32 Brass /Ni plated for neutral
Standard:
NEMA
NEMA No.:
5-20R
Top Material:
Phenolic
Current Interrupting:
Certified for current interrupting at full rated current
Horsepower:
1
Receptacle Style:
Single
Receptacle Grade:
Explosion Proof
Amperage:
20A
Terminal Accommodation:
#14-#10 AWG copper stranded or solid conductor only
Poles and Wires:
2 Pole, 3-Wire Grounding
Certification:
UL Listed, File E2186, Listed to UL Standard 498
Dielectric Voltage:
Withstands 2,000V minimum
Mounting Strap Material:
.050 (1.3) Brass"
Display Size:
Standard Sized Product
Wire Size:
#14 AWG to #10 AWG
Application:
Extra Heavy Duty
Item Type:
Hazardous Location Single
Connectivity:
Screw Terminals
Voltage Rating Description:
125 V
Current / Amperage Rating:
20 A
Industry Standard(s):
Listed to UL Standard 498, File E2186
Material - Mounting Hardware:
Screw Mounting
Amperage Rating:
20 A
Wattage:
2500 W
Length:
4.62 in
OEM Brand Name:
Hubbell Wiring Device-Kellems
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Dielectric Strength:
Withstands 2,000V minimum
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Nema Rating:
5-20R
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V2 or better Environmental - Operating Temperatures - Maximu
Package Quantity:
1
