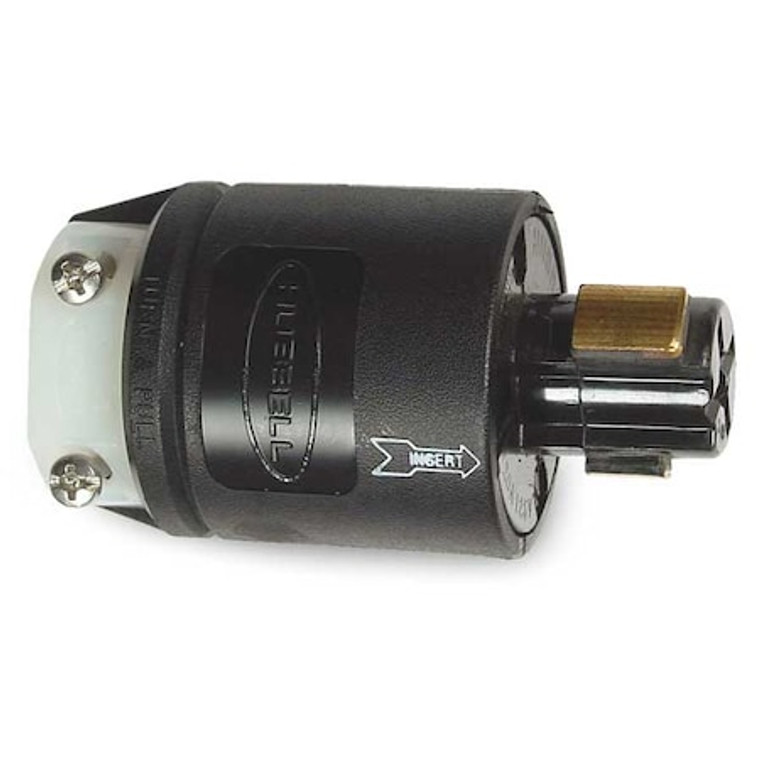

20A Locking Plug 2P 3W 125VAC BK - HBL23035B

20A Locking Plug 2P 3W 125VAC BK - HBL23035B

Hubbell
SKU:
HBL23035B
|
UPC:
783585017440
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.32 in, Grade Industrial, Grounding Grounded, IP Rating IP30
Additional Information
Country of Origin:
United States
Item:
Locking Plug
Wiring Style:
Standard
Grade - Plugs and Receptacles:
Industrial
Amps - Plugs and Receptacles:
20
NEMA Plug Configuration - Plugs and Receptacles:
20A, Non-NEMA
Voltage - Plugs and Receptacles:
125V AC
Number of Poles:
2
Number of Wires:
3
Phase:
Single
Standards:
CSA Certified, UL Listed
IP Rating:
IP30
Shrouded / Non-Shrouded:
Shrouded
Item - Plugs and Receptacles:
Locking Plug
Material:
Nylon
Cord Size:
0.300 in to 0.650 in
Antimicrobial:
No
Amps:
20
Color:
Black
Corrosion Resistant:
No
NEMA Configuration:
Non-NEMA, 3 Blade
Grade:
Industrial
Color - Plugs and Receptacles:
Black
Voltage:
125VAC
Outside Diameter:
1.72 in
Connection Orientation:
Straight
Housing Color:
Black, White
Maximum Operating Temperature:
75 Degrees C
Body Length:
1.72 in
UL 94 Flammability Rating:
HB
Wire Connection Type:
Screw Terminals
Current Rating:
20 A
Blade Material:
Brass
For Minimum Cable Diameter:
0.32 in
Polarized:
Yes
Number of Blades:
3
Market:
Industrial
For Maximum Cable Diameter:
0.66 in
Minimum Operating Temperature:
-40 Degrees C
Resistance Properties:
Chemical Resistant, Impact Resistant
Shrouded:
Yes
Grounding:
Grounded
Voltage Rating:
125V AC
Housing Material:
Nylon
Overall Length:
1.72 in
NEMA Plug Configuration:
Non-NEMA
Operating Temp.:
Maximum Continuous 75 C Minimum -40 C (w/o impact)
Weight (Lbs.):
0.25
Flammability:
HB or better per UL 94 or CSA 22.2 No. 0.6
Temp. Rise:
Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Package Quantity:
1
