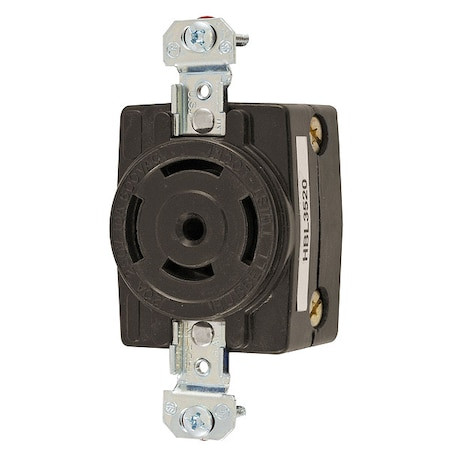

20/10A Twist-Lock Receptacle 4P 5W 250/600VAC BK - HBL3520

20/10A Twist-Lock Receptacle 4P 5W 250/600VAC BK - HBL3520

Hubbell
SKU:
HBL3520
|
UPC:
783585333403
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Locking Receptacle, Connection Orientation Straight, Current Rating 10/20 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Single, Three, Polarized Yes, Shrouded No, Voltage Rating 250/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover
Additional Information
Country of Origin:
United States
Item:
Locking Receptacle
NEMA Configuration:
Non-NEMA
Voltage:
250/600V AC
Amps:
20/10
Color:
Black
Number of Poles:
4
Number of Wires:
5
Phase:
Single, Three
Shrouded / Non-Shrouded:
Non-Shrouded
Wiring Style:
Standard
NEMA Rating:
12, 4X
Material:
Impact Modified PBT
Special Features:
Corrosion resistant
Standards:
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Mounting Type:
Flush Mount
Grade:
Industrial
IP Rating:
IP20
Cover Type:
No Cover
Connection Orientation:
Straight
Maximum Operating Temperature:
75 Degrees C
Contact Material:
Brass
Shrouded:
No
Wire Connection Type:
Screw Terminals
Housing Material:
Nylon
For Environment:
Dry
Flange Type:
Non-Flanged
Market:
Industrial
Includes:
Mounting Hardware
UL 94 Flammability Rating:
V-2
AFCI:
No
Grounding:
Grounded
For Location:
Indoor
Flange Diameter:
Not Applicable
NEMA Receptacle Configuration:
Non-NEMA
Flange Height:
Not Applicable
Voltage Rating:
250/600V AC
Maximum Wire Size:
8 AWG
NEMA Enclosure Rating:
1
Resistance Properties:
Corrosion Resistant
Includes Mounting Hardware:
Yes
Flange Width:
Not Applicable
Polarized:
Yes
Number of Gangs:
1
Minimum Wire Size:
16 AWG
Minimum Operating Temperature:
-40 Degrees C
Housing Color:
Black
Current Rating:
10/20 A
Mount Type:
Flush
Base Material:
Nylon Polyester
Operating Temp.:
Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact)
Wire Size:
#16 AWG - #8 AWG solid or stranded copper wire only.
Lock Type:
Twist-lock
Weight (Lbs.):
0.3
Spring Material:
.040 Brass"
Terminal Designations:
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability:
HB or better per UL 94 or CSA 22.2 No. 0.6
Temp. Rise:
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Display Size:
Standard Sized Product
Dimensions:
3.61 in x 1.28 in x 1.71 in
Voltage Rating Description:
250/600 VAC
OEM Brand Name:
Hubbell Wiring Device-Kellems
Application:
Heavy Duty Industrial
Amperage Rating:
20/10 A
Width:
1.28 in
Dielectric Strength:
Withstands 2,000V minimum
Industry Standard(s):
Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498
Type:
Single Flush Receptacle
Height:
1.71 in
Material - Mounting Hardware:
Screw Mounting
Length:
3.61 in
Item Type:
20A/10A Single Flush Receptacle
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Connectivity:
Back Wired Screw Terminals
Current / Amperage Rating:
20/10 A
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Performance:
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Re
Package Quantity:
1
