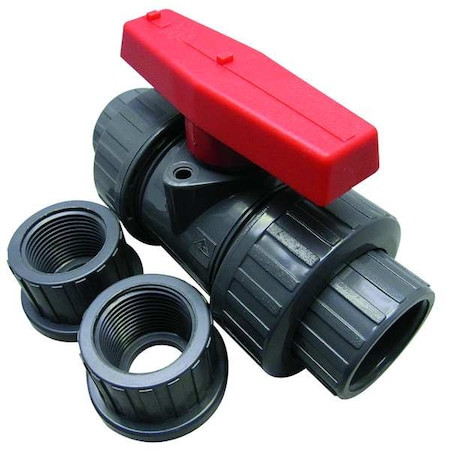

2" Socket PVC Ball Valve Union - 4PGC1

2" Socket PVC Ball Valve Union - 4PGC1

SKU:
4PGC1
|
UPC:
190735518175
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Two-Way Ball Valve, Body Material PVC, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 225 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating Not Applicable, Ball Material PVC, Ball Port Style Standard Port, Handle - Locking Non-Locking, Handle Type Lever
Additional Information
Country of Origin:
Taiwan, Province of China
Pipe Size:
2";Body Material=PVC"
Body Style:
Inline True Union
Temp. Range:
32 Degrees to 140 Degrees F
Port:
Full
Valve Structure:
2-Piece
Connection Type:
Socket/FNPT x Socket/FNPT
Standards:
ASTM F-1970, D-2467 (Socket) & D-2466 (NPT), NSF-61
Body Seal Material:
EPDM
Handle Type:
Lever
Ball Valve Product Group:
Manual
Seat Material:
PTFE
Max. Pressure:
225 psi CWP
Item:
Ball Valve
Ball Valve Basic Body Material:
Plastic
Ball Material:
PVC
Handle Material:
PVC
Stem Material:
PVC
Overall Length:
8.14 in
Stem Type:
Blowout Resistant
Seal Material:
EPDM
Special Features:
Not Applicable
Connection:
Socket/Threaded
Type:
Two Piece, True Union
Sub-Category:
Synthetic Ball Valves
Material of Construction:
PVC
Coefficient of Volume (Cv):
Not Applicable
ANSI Flange Class:
Not Applicable
Ball Port Style:
Standard Port
Handle Length:
6.45 in
Connection Gender - Side 1:
Female
Included Mounting:
Not Applicable
Valve Body Style:
Straight
Maximum Pressure - Combustible Gas:
Not Applicable
Connection Size - Side 1:
2 in
NSF Certifications for Food and Drinking Water:
NSF 61
Cleaned and Bagged:
Not Cleaned and Bagged
Connection Gender - Side 2:
Female
Connection Size - Side 2:
2 in
For Media:
Water
Manufacturer Warranty:
1 yr
Valve Ways:
2-Way
Maximum Pressure - Steam:
Not Applicable
Vented Ball Valve:
Non-Vented
Operating Temperature - Maximum:
140 Degrees F
Meets UL Flammable Gas and Liquid Standards:
Not Applicable
3-A Standard Compliance:
Not Rated
Connection Type - Side 1:
Socket
Ball Opening Size:
1.88 in
Vacuum Service Rating:
Not Applicable
Handle - Locking:
Non-Locking
Maximum Pressure - Operating:
225 psi
Average Surface Roughness (Ra):
Not Applicable
Color - Valve Handle:
Red
Connection Type - Side 2:
NPT
Handle Height:
4.44 in
Nominal Valve Size:
2 in
Operating Temperature - Minimum:
32 Degrees F
Valve Construction:
Two-Piece
Pipe Schedule Compatibility:
Schedule 80
Color - Valve Body:
Gray
Package Quantity:
1
