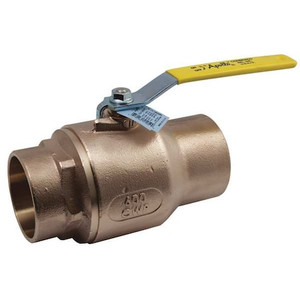

2-1/2" Sweat Bronze Ball Valve Inline - 70LF24901

2-1/2" Sweat Bronze Ball Valve Inline - 70LF24901

Apollo Valves
SKU:
70LF24901
|
UPC:
670750752308
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Two-Way Ball Valve, Body Material Bronze, For Media Air, Water, Valve Construction Two-Piece, Nominal Valve Size 2 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Standard Port, Handle - Locking Non-Locking
Additional Information
Country of Origin:
United States
Pipe Size:
2 1/2";Body Material=Lead-Free Bronze"
Body Style:
Inline
Tube Size:
2 1/2";Handle Type=Lever"
Features:
Blue Hang Tag, White Grip
Handle Material:
Zinc Plated Steel with Vinyl Grip
Max. Steam Pressure:
150 PSI WSP
Ball Valve Basic Body Material:
Bronze
Ball Material:
316 stainless steel
Temp. Range:
-20 Degrees to 450 Degrees F
Stem Type:
Blowout Proof
Item:
Ball Valve
Max. Pressure:
600 psi CWP
Connection Type:
Sweat x Sweat
Ball Valve Product Group:
Manual
Seat Material:
RPTFE
Compliance:
ISO 9001
Port:
Standard
Standards:
NSF 61-8
Body Seal Material:
PTFE
Stem Material:
316 Stainless Steel
Valve Structure:
2-Piece
Overall Length:
2.0 in
Seal Material:
PTFE
Type:
Two Piece
Sub-Category:
Bronze Ball Valves
Material of Construction:
Lead Free Bronze
Average Surface Roughness (Ra):
Not Applicable
Handle - Locking:
Non-Locking
Color - Valve Handle:
Yellow
Valve Construction:
Two-Piece
Valve Body Style:
Straight
Color - Valve Body:
Bronze
Handle Length:
7.75 in
3-A Standard Compliance:
Not Rated
Maximum Pressure - Combustible Gas:
Not Rated
ANSI Flange Class:
Not Applicable
NSF Certifications for Food and Drinking Water:
NSF 61
Maximum Pressure - Steam:
150 psi
Ball Port Style:
Standard Port
Maximum Pressure - Operating:
600 psi
Manufacturer Warranty:
5 yr
Connection Size - Side 1:
2 1/2 in
Connection Type - Side 1:
Sweat
Connection Size - Side 2:
2 1/2 in
Cleaned and Bagged:
Not Cleaned and Bagged
Vacuum Service Rating:
29 in Hg
Pipe Schedule Compatibility:
Not Applicable
Operating Temperature - Maximum:
350 Degrees F
Included Mounting:
Not Applicable
Connection Type - Side 2:
Sweat
Vented Ball Valve:
Not Applicable
Operating Temperature - Minimum:
-20 Degrees F
Valve Ways:
2-Way
For Media:
Air, Water
Coefficient of Volume (Cv):
0.01
Nominal Valve Size:
2 1/2 in
Package Quantity:
1
