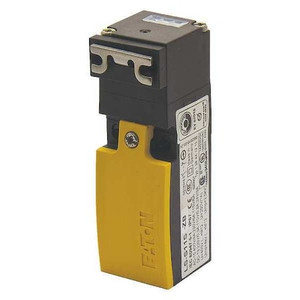

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 65 - LS4-S11-1-I-ZB

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 65 - LS4-S11-1-I-ZB

Eaton
SKU:
LS4-S11-1-I-ZB
|
UPC:
786685393896
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Safety Interlock Switch, Metal Locking, Contact Form 1NO/1NC, Actuator Length 1.42 in, Connection Type Screw, AC Contact Rating 6 A @ 230 V, Series LS-Titan, DC Contact Rating 300 A @ 24 V, Height 3.78 in, Width 1.18 in, Depth 1.31 in, NEMA Rating 1, 12, 13, IP Rating IP65, Operating Temp. Range -13 Degrees to 158 Degrees F, Contact Material Metal, Conduit Size M20 x 1/2 in, Body Material Plastic, Head Material Metal, Description/Special Features Din Door Switch, Pre-travel 15.2mm
Additional Information
Country of Origin:
Germany
Item:
Safety Interlock Switch
Style:
Metal Locking
Series:
LS-Titan
Actuator Length:
1.42 in
AC Contact Rating:
6 A @ 230 V
DC Contact Rating:
300 A @ 24 V
Contact Form:
1NO/1NC
Connection Type:
Screw
Height:
3.78 in
Width:
1.18 in
Depth:
1.31 in
IP Rating:
IP65
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Operating Force:
1,500 N
NEMA Rating:
1, 12, 13
Positive Travel:
30 mm
Description/Special Features:
Din Door Switch
Body Material:
Plastic
Head Material:
Metal
Contact Material:
Metal
Differential Travel:
18.5 mm
Pre-travel:
15.2mm
Standards:
RoHS, UL Listed
Conduit Size:
M20 x 1/2 in
Movement:
Lateral
Features:
Din Door Switch
Electrical Connection:
Screw Terminals
Contact Rating:
6A at 230 Vac, 3A at 24 Vdc
Maximum AC current:
6 A at 230 Vac
Product Width:
1.57 in
Certifications:
UL Listed
Operating temperature - max:
158°F
Operating temperature - min:
-13°F
Connection:
Screw terminal
Type:
LS-Titan
Environmental rating:
IP65
Switch type:
Cabinet door interlock
Enclosure Material:
Plastic
Maximum DC current:
3 A at 24 Vdc
Contact configuration:
1 NO-1 NC with positive opening contact
Mounting method:
Full-size DIN rail
Product Height:
1.57 in
Product Length/Depth:
4.92 in
Product Name:
Eaton LS-Titan miniature DIN limit switch
Overtravel:
30 mm
Overall Width:
1.57 in
Actuator Material:
Metal
Circuitry Action:
Snap Action
NEMA Enclosure Rating:
1, 12, 13
Overall Height:
1.57 in
Key Hole Location:
Back, Front, Left, Right
Pretravel:
15.2 mm
Operating Temperature - Minimum:
-13 Degrees F
Includes Actuating Key:
Actuating Key Included
Resistance Properties:
Shock Resistant
Operating Temperature - Maximum:
158 Degrees F
Overall Depth:
4.92 in
Actuating Key Type:
Flat
Manufacturer Warranty Length:
1 yr
Package Quantity:
1
