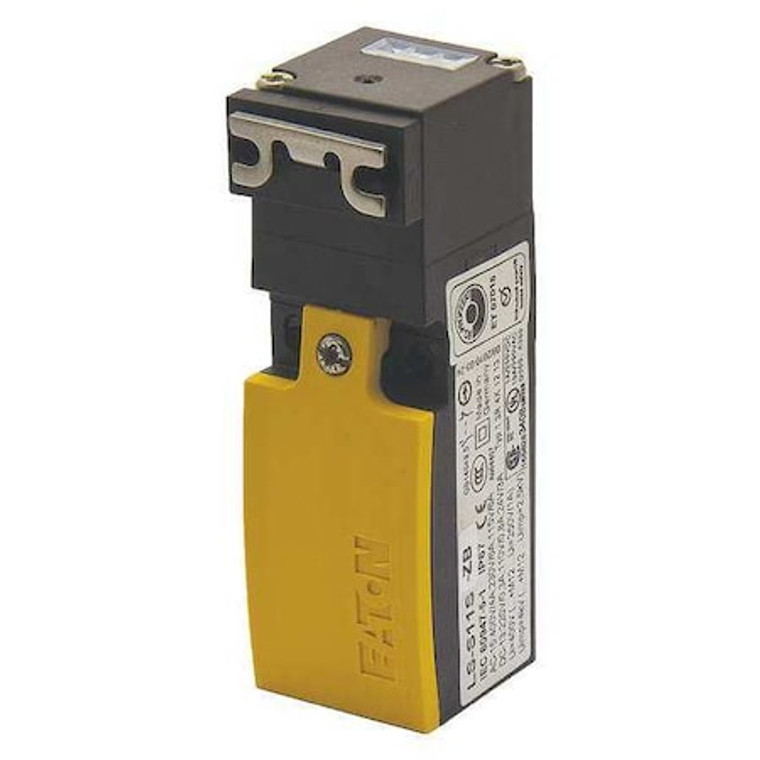

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 65 - LS-S11-120AFT-ZBZ-X

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 65 - LS-S11-120AFT-ZBZ-X

Eaton
SKU:
LS-S11-120AFT-ZBZ-X
|
UPC:
786685393681
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Safety Interlock Switch, Metal Locking, Contact Form 1NO/1NC, Actuator Length 1.42 in, Connection Type Screw, AC Contact Rating 6 A @ 240 V, Series LS-Titan, DC Contact Rating 300 A @ 24 V, Solenoid Voltage 120 V AC, Height 5.37 in, Width 2.36 in, Depth 1.21 in, NEMA Rating 1, 12, 13, IP Rating IP66, IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Contact Material Metal, Conduit Size M20 x 1/2 in, Body Material Polyamide, Head Material Metal
Additional Information
Country of Origin:
Germany
Item:
Safety Interlock Switch
Style:
Metal Locking
Series:
LS-Titan
Actuator Length:
1.42 in
AC Contact Rating:
6 A @ 240 V
DC Contact Rating:
300 A @ 24 V
Solenoid Voltage:
120 V AC
Contact Form:
1NO/1NC
Connection Type:
Screw
Height:
5.37 in
Width:
2.36 in
Depth:
1.21 in
IP Rating:
IP66, IP67
Operating Temp. Range:
-13 Degrees to 158 Degrees F
Contact Material:
Metal
Head Material:
Metal
Standards:
RoHS, UL Listed
NEMA Rating:
1, 12, 13
Description/Special Features:
Locking by Solenoid, Power to Unlock
Differential Travel:
18.5 mm
Movement:
Lateral
Pre-travel:
15.2mm
Positive Travel:
30 mm
Conduit Size:
M20 x 1/2 in
Operating Force:
1,500 N
Body Material:
Polyamide
Features:
Locking by Solenoid, Power to Unlock
Electrical Connection:
Screw Terminals
Certifications:
UL Listed
Product Height:
6.81 in
Maximum AC current:
6A
Product Width:
1.21 in
Product Length/Depth:
2.36 in
Connection:
Screw terminal
Maximum DC current:
3A
Enclosure Material:
Polyamide PA66-GF25
Contact Rating:
6A at 240Vac, 3A at 24Vdc
Contact configuration:
1 NO-1 NC, slow make break, positive opening
Operating temperature - min:
-13°F
Environmental rating:
IP66, IP67
Type:
LS-Titan
Operating temperature - max:
158°F
Switch type:
Cabinet door interlock
Input voltage:
120 Vac
Product Name:
Eaton LS-Titan miniature DIN limit switch
Overall Width:
1.21 in
Circuitry Action:
Snap Action
Overall Height:
6.81 in
Pretravel:
15.2 mm
Operating Temperature - Minimum:
-13 Degrees F
Actuator Material:
Metal
Manufacturer Warranty Length:
1 yr
NEMA Enclosure Rating:
1, 12, 13
Includes Actuating Key:
No Actuating Key Included
Operating Temperature - Maximum:
158 Degrees F
Overtravel:
30 mm
Key Hole Location:
Back, Front, Left, Right
Resistance Properties:
Shock Resistant
Actuating Key Type:
Elbowed, Flat
Overall Depth:
2.36 in
Package Quantity:
1
