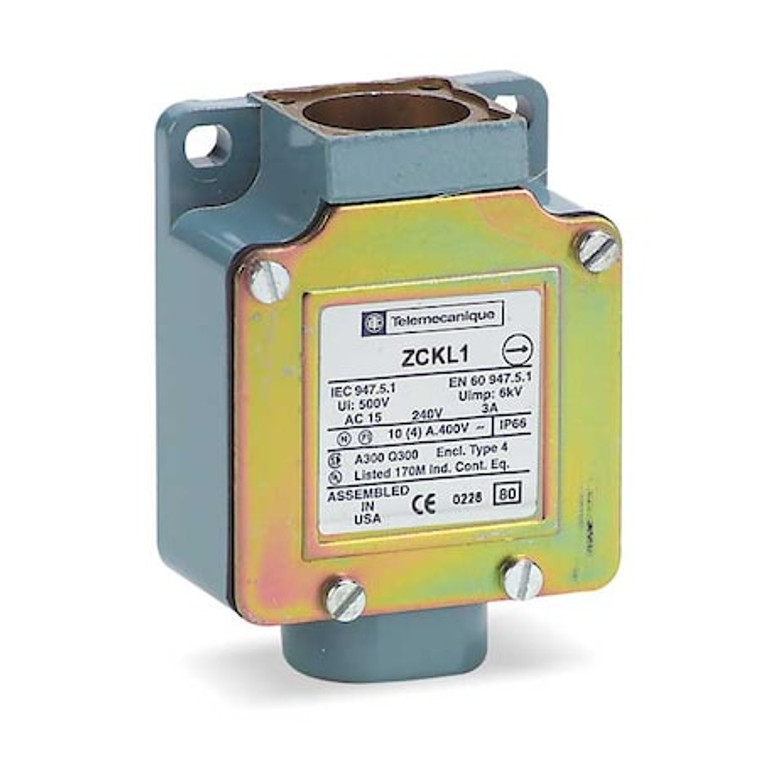

1NC/1NO Limit Switch Body Nema 1, 2, 3, 4, 12 IP 66 - ZCKL1H7

1NC/1NO Limit Switch Body Nema 1, 2, 3, 4, 12 IP 66 - ZCKL1H7

Telemecanique Sensors
SKU:
ZCKL1H7
|
UPC:
785901466703
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKL Series Limit Switches, AC Contact Rating 3 A @ 240 V, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP66, Operating Temp. -13 Degrees to 158 Degrees F, Standards EN 50047
Additional Information
Country of Origin:
France
Item:
Limit Switch Body
Contact Form:
1NO/1NC
For Use With:
XCKL Series Limit Switches
Depth:
30 mm
Height:
72-72 mm
AC Contact Rating:
3 A @ 240 V
Width:
52 mm
DC Contact Rating:
0.27 A @ 250 V
NEMA Rating:
1, 12, 2, 3, 4
Series:
XCKL
Standards:
EN 50047
Operating Temp.:
-13 Degrees to 158 Degrees F
Electrical Connection:
Screw Clamp Terminals
IP Rating:
IP66
Material:
Metal
Body Material:
metal
Electrical Durability:
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Number Of Steps:
1 1 position
Minimum Actuation Speed:
0.01 m/min
Short-Circuit Protection:
10 A cartridge fuse gG
Ambient Air Temperature For Operation:
-25-70°C standard environment
Terminals Description Iso N°1:
(23-24)NO || (13-14)NO
Ambient Air Temperature For Storage:
-40-70°C
Number Of Poles:
2
Ip Degree Of Protection:
IP66
Product Compatibility:
XCKL
Contact Operation:
snap action
Product Or Component Type:
limit switch body
Environmental Characteristic:
standard environment
Ik Degree Of Protection:
IK05
Positive Opening:
with
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Maximum Resistance Across Terminals:
0.25 mOhm IEC 60255-7 category 3
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60664 || 6 kV IEC 60947-1
[Ithe] Conventional Enclosed Thermal Current:
10 A
Associated Head:
ZCKD23 || ZCKD239 || ZCKD91 || ZCKD59 || ZCKD17 || ZCKD41 || ZCKD05 || ZCKD21 || ZCKD029 || ZCKD16 || ZCKD02 || ZCKD06 || ZCKD81 || ZCKD10 || ZCKD109 || ZCKD15 || ZCKD08 || ZCKD219
Cable Entry:
1 entry tapped for 1/2 NPT conduit"
Contacts Material:
silver plated contacts
Body Type:
fixed
Contacts Type And Composition:
1 NC + 1 NO
Series Name:
standard format
Device Short Name:
ZCKL
[Ui] Rated Insulation Voltage:
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Terminals Description Iso N°1:
(23-24)NO || (13-14)NO
NEMA Enclosure Rating:
1, 12, 2, 3, 4
Mounting Hole Diameter:
0.2 in
Compatible with Series:
XCKL
Compatible with Manufacturer Model Number:
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Overall Width:
2.05 in
Indicating Light:
No Indicating Light Included
Manufacturer Warranty Length:
18 mo
Operating Temperature - Minimum:
-13 Degrees F
Overall Depth:
1.18 in
Body Configuration:
Non Plug-In
Mounting Hole Horizontal Center to Center Distance:
41 mm
Mounting Hole Vertical Center to Center Distance:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Overall Height:
2.83 in
Number of Mounting Holes:
2
Compatible with Mfr. Model No.:
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
For Use with Mfr Model Number:
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Package Quantity:
1
