15.6" L Mountable Cable Tie NAT PK 100 - BC4S-S10-C
PanduitLog in for pricing
(No reviews yet)
Write a Review
Panduit
15.6" L Mountable Cable Tie NAT PK 100 - BC4S-S10-C
Cable Tie, Mountable, Actual Length 15.6 in, Width 0.18 in, Nominal Length 16 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 50 lb, Halogen-Free, Low-Smoke, Plenum Rated, Standard, Mounting Method Screw Mount, Nominal Max. Bundle Dia. 4 in, Temp. Range -76 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, Screw Mount Hole Size 0.19 in, UL Type 2, 21, Thickness 0.06 in
- Country of Origin:
- Costa Rica
- Item:
- Cable Tie
- Cable Tie Style:
- Mountable
- Nominal Length:
- 16 in
- Width:
- 0.18";Nominal Max. Bundle Dia.=4 in"
- Color:
- natural
- Material:
- Nylon 6/6
- Tensile Strength:
- 50 lb.
- Indoor/Outdoor:
- Indoor
- Approximate Length - Cable Tie:
- 15-1/2";UL Type=2"
- Metal Detectable:
- No
- Tool Code:
- E/F
- Width - Cable Tie:
- 0.18";Standards=UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2"
- Color - Cable Tie:
- Natural
- Design - Cable Tie:
- Mountable
- Design:
- Mountable
- Temp. Range:
- -76 Degrees to 185 Degrees F
- Mounting Hole Size - Cable Tie:
- #10
- Basic Material - Cable Tie:
- Nylon
- Basic Material:
- Nylon
- Mounting Hole Size:
- #10
- Cable Tie Duty:
- Standard
- Thickness:
- 0.05";Max. Bundle Dia.=4.00""
- Length:
- 15.6";Locking Style=Stainless Steel Barb"
- Approximate Length:
- 15-1/2";Tensile Strength - Cable Tie=50 lb."
- Mounting Style:
- Mounting Head
- Length - Cable Tie:
- 15.60";Mounting Method=Screw Mount"
- Application:
- General Purpose
- Flame Retardant:
- No
- Cable Tie Properties:
- Halogen-Free, Low-Smoke, Plenum Rated
- Number of Straps:
- 1
- Recommended Tool:
- 376W68, 62PX63, Mfr. No. GS4H, Mfr. No. GTH, Mfr. No. GTS, Mfr. No. GTSL, Mfr. No. PPTS, Mfr. No. PTH, Mfr. No. PTS, Mfr. No. STH2
- Max. Temp. Rating:
- 185 Degrees F
- Min. Temp. Rating:
- -76 Degrees F
- Plenum Rated:
- Yes
- Actual Length:
- 15.6 in
- Screw Mount Hole Size:
- 0.19 in
- Outdoor Use:
- No
- Product Type:
- Cable Tying
- Depth:
- 15.60";Additional Information="
- Std Ctn Qty:
- 1000
- Bulk Pkg Qty:
- 500
- Bulk Ctn Qty:
- 5000
- Product Name:
- Dome-Top Barb Ty Clamp Tie
- Cable Manager Type:
- Cable Tie
- Product Material:
- Nylon
- Product Line:
- Dome-Top Barb Ty
- Sub Brand:
- Dome-Top®
- Standards Met:
- UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
- Minimum Installation Temperature (°F):
- -4
- Screw Size:
- #10 (M5)
- Maximum Operating Temperature (°C):
- 85
- Minimum Bundle Diameter (In.):
- 0.06
- Minimum Loop Tensile Strength (lb):
- 50
- Maximum Bundle Diameter (mm):
- 101.6
- Environment:
- Plenum
- Body Width (In.):
- 0.185
- Body Thickness (In.):
- 0.052
- Overall Length (In.):
- 15.6
- Overall Length (mm):
- 396
- Minimum Installation Temperature (°C):
- -20
- Minimum Bundle Diameter (mm):
- 1.5
- Body Thickness (mm):
- 1.3
- Minimum Loop Tensile Strength (N):
- 222
- Body Width (mm):
- 4.7
- Minimum Operating Temperature (°C):
- -60
- Minimum Operating Temperature (°F):
- -76
- Maximum Bundle Diameter (In.):
- 4
- Maximum Operating Temperature (°F):
- 185
- Package Quantity:
- 100
-
-
-
-

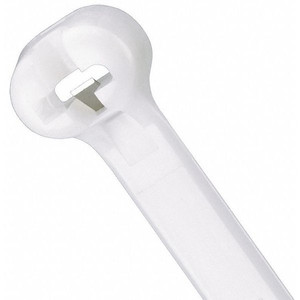

8" L Intermediate Cable Tie NAT PK 1000 - BT2I-M
