14.3" L Intermediate Cable Tie BK PK 1000 - BT4I-M0
PanduitLog in for pricing
(No reviews yet)
Write a Review
Panduit

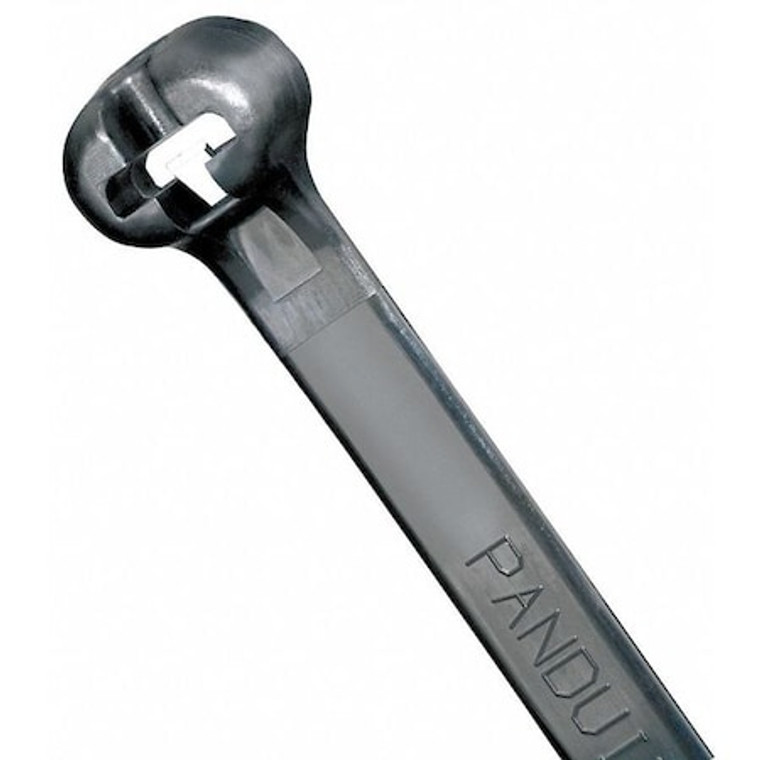

14.3" L Intermediate Cable Tie BK PK 1000 - BT4I-M0
Cable Tie, Standard, Actual Length 14.3 in, Width 0.14 in, Nominal Length 14 1/2 in, Locking Style Stainless Steel Barb, Color Black, Basic Material - Cable Tie Nylon, Tensile Strength 40 lb, Halogen-Free, Low-Smoke, UV Light Resistant, Weather Resistant, Intermediate, Nominal Max. Bundle Dia. 4 in, Temp. Range -76 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use Yes, Plenum Rated Yes, UL Type 2, Thickness 0.05 in, Max. Bundle Dia. 4 in
- Country of Origin:
- Costa Rica
- Item:
- Cable Tie
- Cable Tie Style:
- Standard
- Nominal Length:
- 14 1/2 in
- Width:
- 0.14";Nominal Max. Bundle Dia.=4 in"
- Color:
- Black
- Material:
- Nylon 6/6
- Tensile Strength:
- 40 lb.
- Indoor/Outdoor:
- Indoor, Outdoor
- Length - Cable Tie:
- 14.30";Length=14.3""
- Temp. Range:
- -76 Degrees to 185 Degrees F
- Approximate Length - Cable Tie:
- 14-1/2";Tool Code=E"
- Basic Material - Cable Tie:
- Nylon
- Cable Tie Duty:
- Intermediate
- Max. Bundle Dia.:
- 4.00";UL Type=2"
- Standards:
- UL 62275 (Type 2, 21), CSA, CE, RoHS
- Resists:
- Weather, UV
- Tensile Strength - Cable Tie:
- 40 lb.
- Locking Style:
- Stainless Steel Barb
- Width - Cable Tie:
- 0.14";Approximate Length=14-1/2""
- Basic Material:
- Nylon
- Design:
- Standard
- Color - Cable Tie:
- Black
- Design - Cable Tie:
- Standard
- Thickness:
- 0.04";Metal Detectable=No"
- Flame Retardant:
- No
- Outdoor Use:
- Yes
- Recommended Tool:
- 376V35, 52ZJ96, 62PX63
- Number of Straps:
- 1
- Cable Tie Properties:
- Halogen-Free, Low-Smoke, UV Light Resistant, Weather Resistant
- Plenum Rated:
- Yes
- Actual Length:
- 14.3 in
- Min. Temp. Rating:
- -76 Degrees F
- Max. Temp. Rating:
- 185 Degrees F
- For Use With:
- GTS-E, GS2B-E, PTS, PPTS, STS2
- Product Color:
- Black
- Cable Manager Type:
- Cable Tie
- Product Name:
- Dome-Top Cable Tie
- Product Line:
- Dome-Top
- Minimum Loop Tensile Strength:
- 40 lb
- Environmentally Friendly:
- Yes
- Product Material:
- Nylon 6.6
- Product Type:
- Cable Tying
- Minimum Installation Temperature (°C):
- -20
- Sub Brand:
- Dome-Top®
- Minimum Bundle Diameter (In.):
- 0.03
- Minimum Loop Tensile Strength (lb):
- 40
- Overall Length (mm):
- 363
- Body Width (mm):
- 3.6
- Overall Length (In.):
- 14.3
- Maximum Bundle Diameter (mm):
- 102
- Body Thickness (In.):
- 0.049
- Maximum Bundle Diameter (In.):
- 4
- Minimum Operating Temperature (°C):
- -60
- Body Width (In.):
- 0.141
- Standards Met:
- UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code
- Environment:
- Indoor/Outdoor
- Minimum Installation Temperature (°F):
- -4
- Body Thickness (mm):
- 1.2
- Minimum Operating Temperature (°F):
- -76
- Resistance Properties:
- UV Resistant
- Minimum Bundle Diameter (mm):
- 0.8
- Minimum Loop Tensile Strength (N):
- 178
- Maximum Operating Temperature (°F):
- 185
- Maximum Operating Temperature (°C):
- 85
- Minimum Operating Temperature (°F):
- -76
- Maximum Operating Temperature (°C):
- 85
- Maximum Operating Temperature (°F):
- 185
- Minimum Installation Temperature (°F):
- -4
- Minimum Operating Temperature (°C):
- -60
- Minimum Installation Temperature (°C):
- -20
- Package Quantity:
- 1000
-
-
