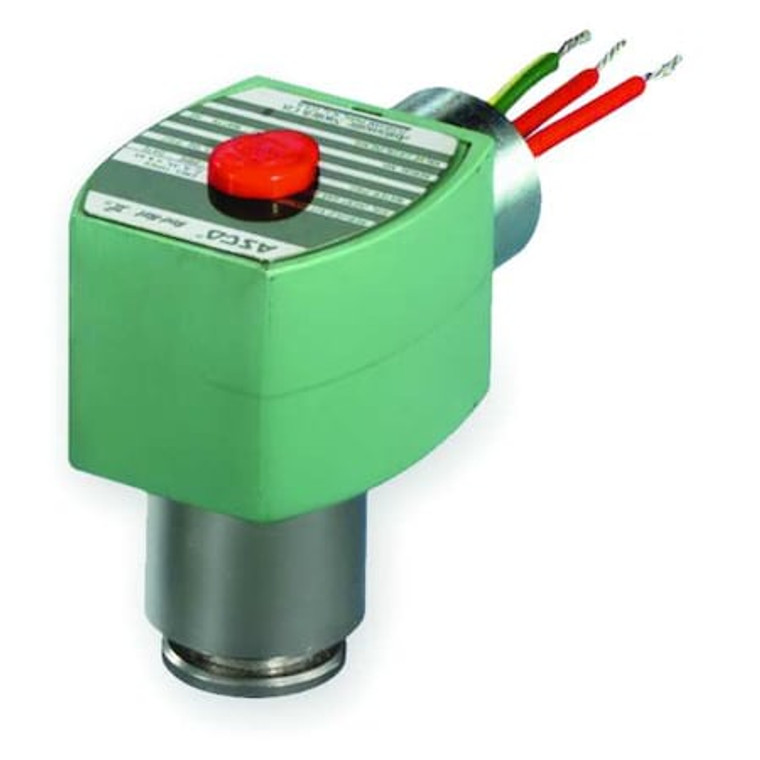

120V AC Nickel-Plated Brass Cryogenic Solenoid Valve, Normally Closed, 1/8 in Pipe Size - 8264G010

120V AC Nickel-Plated Brass Cryogenic Solenoid Valve, Normally Closed, 1/8 in Pipe Size - 8264G010

Redhat
SKU:
8264G010
|
UPC:
94704533018
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Nominal Pipe Size 1/8 in, Orifice Diameter 3/32 in, Body Material Brass, Coefficient of Volume (Cv) 0.2, Operating Pressure Differential Air/Inert Gas - Maximum 300 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material PTFE, Voltage 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight, For Media Cryogenic Fluids
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1/8 in
Electrical Connections:
1/2 Conduit w/18" Leads"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Cryogenic Solenoid Valve
Orifice Dia.:
3/32 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Nickel-Plated Brass
Environmental Rating - Valves:
Indoor, Outdoor
Body Material:
Nickel Plated Brass
Watts:
13.8 W
Seat Material:
Stainless Steel
Hz:
60 Hz
Overall Height:
2 13/16 in
Overall Width:
1 11/16 in
Standards:
CSA Certified, Meets Applicable CE Directives
Valve Ways and Positions:
2-Way/2-Position
Seal Material:
PTFE/Urethane
Overall Length:
1 1/8 in
NEMA Rating:
1, 2, 3, 3S, 4, 4X
Max. Operating Pressure Differential:
300 psi
Pipe Size:
1/8";Coil Enclosure=Watertight No Junction Box"
Coil Insulation Class:
F
Max. Operating Pressure Differential Air/Inert Gas:
300 psi
Seal Material - Valves:
PTFE
Disc Material:
PTFE/Urethane
Max. Fluid Temp.:
120 Degrees F
Min. Operating Pressure Differential:
0 psi
Coefficient of Volume:
0.2
Application:
Analytical and Diagnostic Equipment
Operation Type:
Direct Acting
Operating Pressure Differential Air/Inert Gas - Maximum:
300 psi
Operating Pressure Differential - Minimum:
0 psi
Includes Coil:
Yes
Valve Starting Configuration:
Normally Closed
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
Operating Pressure Differential Liquid CO2 - Maximum:
300 psi
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
Operating Pressure Differential Hot Water - Minimum:
Not Applicable
Operating Pressure Differential Steam - Minimum:
Not Applicable
Valve Positions:
2-Position
Coefficient of Volume (Cv):
0.2
Inlet Connection Type:
NPTF
NEMA Enclosure Rating:
1, 2, 3, 3S, 4, 4X
Environmental Rating:
Indoor, Outdoor
Includes Seal:
Yes
For Media:
Cryogenic Fluids
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Valve Ways:
2-Way
Wattage:
13.8 W
Outlet Connection Type:
NPTF
Operating Pressure Differential Steam - Maximum:
Not Rated
Operating Pressure Differential Water - Maximum:
Not Rated
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Operating Pressure Differential Liquid CO2 - Minimum:
0 psi
Orifice Diameter:
3/32 in
Operating Pressure Differential Air/Inert Gas - Minimum:
0 psi
Operating Pressure Differential - Maximum:
300 psi
Operating Pressure Differential Light Oil - Minimum:
Not Applicable
Nominal Pipe Size:
1/8 in
Fluid Temperature - Maximum:
120 Degrees F
Thread Type:
NPT
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Operating Pressure Differential Light Oil - Maximum:
Not Rated
Package Quantity:
1
