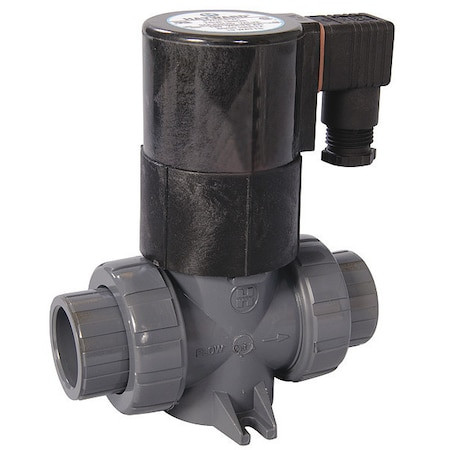

120V AC CPVC Solenoid Valve, Normally Closed, 3/4 in Pipe Size - SV20075STE

120V AC CPVC Solenoid Valve, Normally Closed, 3/4 in Pipe Size - SV20075STE

Hayward Flow Control
SKU:
SV20075STE
|
UPC:
610377115902
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Inline Single, Nominal Pipe Size 3/4 in, Orifice Diameter 3/8 in, Body Material CPVC, Coefficient of Volume (Cv) 3.2, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material EPDM, Voltage 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
Additional Information
Country of Origin:
United States
Pipe Size - Valves:
3/4 in
Electrical Connections:
1/2 Conduit"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Solenoid Valve
Orifice Dia.:
3/64 in
Valve Configuration:
Normally Closed
Body Material - Valves:
CPVC
Body Material:
CPVC
Overall Width:
3 in
Max. Operating Pressure Differential Light Oil:
120 psi
Safe Working Water Pressure:
120 psi
Pipe Size:
3/4";NEMA Rating=4"
Min. Operating Pressure Differential:
0 psi
Max. Operating Pressure Differential Water:
120 psi
Coil Insulation Class:
B
Seal Material:
EPDM
Overall Height:
6 5/8 in
Valve Ways and Positions:
2-Way/2-Position
Operation:
Direct Acting
Seal Material - Valves:
EPDM
Environmental Rating - Valves:
Corrosive, Indoor, Outdoor
Max. Flow Rate:
5 fps
Coil Enclosure:
Watertight
Max. Fluid Temp.:
190 Degrees F
Coefficient of Volume:
3.2
Overall Length:
5 5/16 in
Hz:
50 to 60
Operation Type:
Direct Acting
Standards:
CSA, UL Listed
Operating Pressure Differential Water - Minimum:
Not Applicable
Orifice Diameter:
3/8 in
Operating Pressure Differential Steam - Maximum:
Not Rated
Inlet Connection Type:
NPT
Operating Pressure Differential Water - Maximum:
90 psi
Fluid Temperature - Maximum:
200 Degrees F
Operating Pressure Differential Cryogenic Fluid - Maximum:
Not Applicable
Nominal Pipe Size:
3/4 in
Operating Pressure Differential - Minimum:
0 psi
Valve Ways:
2-Way
Valve Positions:
2-Position
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Operating Pressure Differential Liquid CO2 - Maximum:
Not Applicable
Operating Pressure Differential Hot Water - Minimum:
Not Applicable
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Ambient Temperature - Minimum:
34 Degrees F
Valve Type:
Inline Single
Airflow - Maximum:
7 gpm
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Operating Pressure Differential Steam - Minimum:
Not Applicable
Operating Pressure Differential Light Oil - Minimum:
Not Applicable
Valve Starting Configuration:
Normally Closed
Valve Body Style:
Straight
Thread Type:
NPT
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
For Media:
Acids, Salt Water, Water
Operating Pressure Differential - Maximum:
90 psi
Operating Pressure Differential Air/Inert Gas - Minimum:
Not Applicable
Outlet Connection Type:
NPT
NEMA Enclosure Rating:
4
Includes Seal:
Yes
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
Includes Coil:
Yes
Operating Pressure Differential Cryogenic Fluid - Minimum:
Not Applicable
Fluid Temperature - Minimum:
120 Degrees F
Ambient Temperature - Maximum:
190 Degrees F
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Mounting Orientation:
Horizontal or Vertical
Operating Pressure Differential Light Oil - Maximum:
120 psi
Environmental Rating:
Corrosive, Indoor, Outdoor
Wattage:
19.2 W
Operating Pressure Differential Air/Inert Gas - Maximum:
Not Rated
Coefficient of Volume (Cv):
3.2
Frequency:
60 Hz
Operating Pressure Differential Liquid CO2 - Minimum:
Not Applicable
Package Quantity:
1
