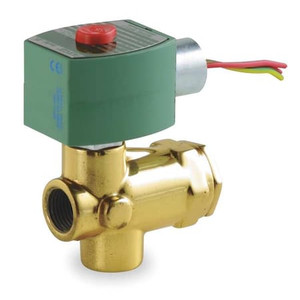

120V AC Brass Steam Solenoid Valve, Normally Closed, 1/2 in Pipe Size - 8222G066

120V AC Brass Steam Solenoid Valve, Normally Closed, 1/2 in Pipe Size - 8222G066

Redhat
SKU:
8222G066
|
UPC:
94703281002
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type High Temperature, Nominal Pipe Size 1/2 in, Orifice Diameter 3/8 in, Body Material Brass, Coefficient of Volume (Cv) 2.5, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material PTFE, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1/2 in
Center Line Pipe Center Size:
3 5/8 in
Electrical Connections:
1/2 Conduit w/18" Leads"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Steam Solenoid Valve
Orifice Dia.:
3/8 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Brass
Hz:
60/50
Environmental Rating - Valves:
Indoor, Outdoor
Overall Height:
4 11/64 in
Max. Operating Pressure Differential Steam:
80 psi
Overall Width:
1 11/16 in
Body Material:
Brass
Coefficient of Volume:
2.5
Overall Length:
2 9/32 in
Pipe Size:
1/2";Watts=6.1 W"
Coil Enclosure:
Watertight No Junction Box
Media:
Steam
NEMA Rating:
1, 2, 3, 3S, 4, 4X
Ambient Temp. Range:
125 Degrees F
Coil Insulation Class:
F
Max. Fluid Temp. Steam:
324 Degrees F
Valve Ways and Positions:
2-Way/2-Position
Min. Operating Pressure Differential:
1 psi
Operation Type:
Pilot Operated
Seal Material:
PTFE
Application:
Commercial Laundry, Kitchen Equipment, Molding, Steam Atomization Sterilizer and Autoclave
Standards:
UL Listed
Center Le Pipe Center Size:
3 5/8""
Operating Pressure Differential Light Oil - Maximum:
Not Rated
Valve Ways:
2-Way
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Outlet Connection Type:
NPTF
Frequency:
50 Hz, 60 Hz
Inlet Connection Type:
NPTF
Valve Starting Configuration:
Normally Closed
Operating Pressure Differential Liquid CO2 - Minimum:
Not Applicable
Valve Positions:
2-Position
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum:
Not Rated
Orifice Diameter:
3/8 in
Ambient Temperature - Maximum:
140 Degrees F
Coefficient of Volume (Cv):
2.5
Fluid Temperature - Maximum:
324 Degrees F
Operating Pressure Differential Cryogenic Fluid - Maximum:
Not Applicable
Operating Pressure Differential Water - Maximum:
80 psi
Operating Pressure Differential - Minimum:
1 psi
Valve Type:
High Temperature
Includes Seal:
Yes
Nominal Pipe Size:
1/2 in
Operating Pressure Differential Liquid CO2 - Maximum:
Not Applicable
Operating Pressure Differential Air/Inert Gas - Minimum:
Not Applicable
Environmental Rating:
Hazardous, Indoor, Outdoor, Washdown
Includes Coil:
Yes
Operating Pressure Differential Light Oil - Minimum:
Not Applicable
For Media:
Hot Water, Steam
Operating Pressure Differential Water - Minimum:
Not Applicable
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
Operating Pressure Differential Steam - Minimum:
1 psi
Operating Pressure Differential Cryogenic Fluid - Minimum:
Not Applicable
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Wattage:
6.1 W
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
NEMA Enclosure Rating:
1, 2, 3, 3S, 4, 4X
Ambient Temperature - Minimum:
14 Degrees F
Operating Pressure Differential Steam - Maximum:
80 psi
Thread Type:
NPT
Package Quantity:
1
