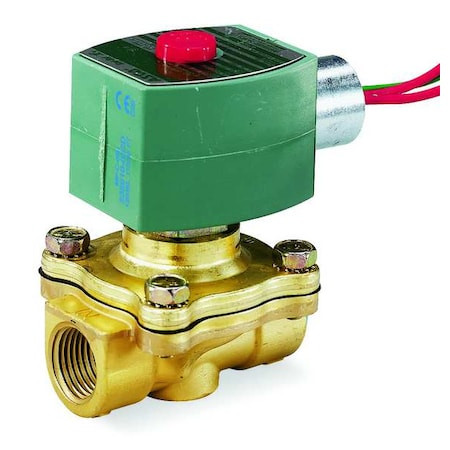

120V AC Brass Solenoid Valve, Normally Open, 1/2 in Pipe Size - EF8210G034

120V AC Brass Solenoid Valve, Normally Open, 1/2 in Pipe Size - EF8210G034

Redhat
SKU:
EF8210G034
|
UPC:
94701550285
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Open, Valve Type High Flow, Nominal Pipe Size 1/2 in, Orifice Diameter 5/8 in, Body Material Brass, Coefficient of Volume (Cv) 4, Operating Pressure Differential Air/Inert Gas - Maximum 150 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Explosion Proof, Watertight
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1/2 in
Center Line Pipe Center Size:
3 7/16 in
Electrical Connections:
1/2 Conduit w/18" Leads"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Solenoid Valve
Orifice Dia.:
5/8 in
Valve Configuration:
Normally Open
Body Material - Valves:
Brass
Application:
Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
Watts:
10.1 W
Seal Material - Valves:
NBR
Body Material:
Brass
Media:
Air/Inert Gas, Light Oil and Water
Overall Width:
2 5/16 in
Environmental Rating - Valves:
Explosion Proof, Indoor, Outdoor
Hz:
60
Max. Fluid Temp.:
180 Degrees F
NEMA Rating:
3, 4, 4X, 7, 9
Overall Length:
2 3/4 in
Min. Operating Pressure Differential:
0 psi
Overall Height:
4 3/8 in
Pipe Size:
1/2";Max. Operating Pressure Differential Light Oil=125 psi"
Valve Ways and Positions:
2-Way/2-Position
Coil Enclosure:
Explosionproof and Watertight
Coefficient of Volume:
4.0
Max. Operating Pressure Differential Water:
150 psi
Max. Operating Pressure Differential Air/Inert Gas:
150 psi
Seal Material:
NBR
Coil Insulation Class:
F
Standards:
UL Listed
Operation Type:
Pilot Operated
Inlet Connection Type:
NPTF
Includes Seal:
Yes
Thread Type:
NPT
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
Operating Pressure Differential Cryogenic Fluid - Minimum:
Not Applicable
Operating Pressure Differential - Minimum:
0 psi
Operating Pressure Differential Water - Maximum:
150 psi
Response Time:
1 sec
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
Valve Ways:
2-Way
Valve Type:
High Flow
Operating Pressure Differential Liquid CO2 - Maximum:
Not Applicable
Outlet Connection Type:
NPTF
Operating Pressure Differential Air/Inert Gas - Minimum:
0 psi
Operating Pressure Differential Liquid CO2 - Minimum:
Not Applicable
Operating Pressure Differential Light Oil - Minimum:
0 psi
For Media:
Air, Inert Gases, Light Oil, Water
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Nominal Pipe Size:
1/2 in
Operating Pressure Differential Steam - Maximum:
Not Rated
Operating Pressure Differential Cryogenic Fluid - Maximum:
Not Applicable
Environmental Rating:
Indoor, Outdoor
Operating Pressure Differential Water - Minimum:
0 psi
Ambient Temperature - Maximum:
140 Degrees F
Mounting Orientation:
Vertical
Operating Pressure Differential Hot Water - Minimum:
Not Applicable
Wattage:
10.1 W
Ambient Temperature - Minimum:
14 Degrees F
Includes Coil:
Yes
Operating Pressure Differential Light Oil - Maximum:
125 psi
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Coefficient of Volume (Cv):
4
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Frequency:
50 Hz, 60 Hz
Valve Positions:
2-Position
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Operating Pressure Differential Steam - Minimum:
Not Applicable
Fluid Temperature - Maximum:
180 Degrees F
NEMA Enclosure Rating:
1, 2, 3, 3S, 4, 4X
Valve Starting Configuration:
Normally Open
Operating Pressure Differential Air/Inert Gas - Maximum:
150 psi
Orifice Diameter:
5/8 in
Operating Pressure Differential - Maximum:
150 psi
Center Le Pipe Center Size:
3 7/16""
Package Quantity:
1
