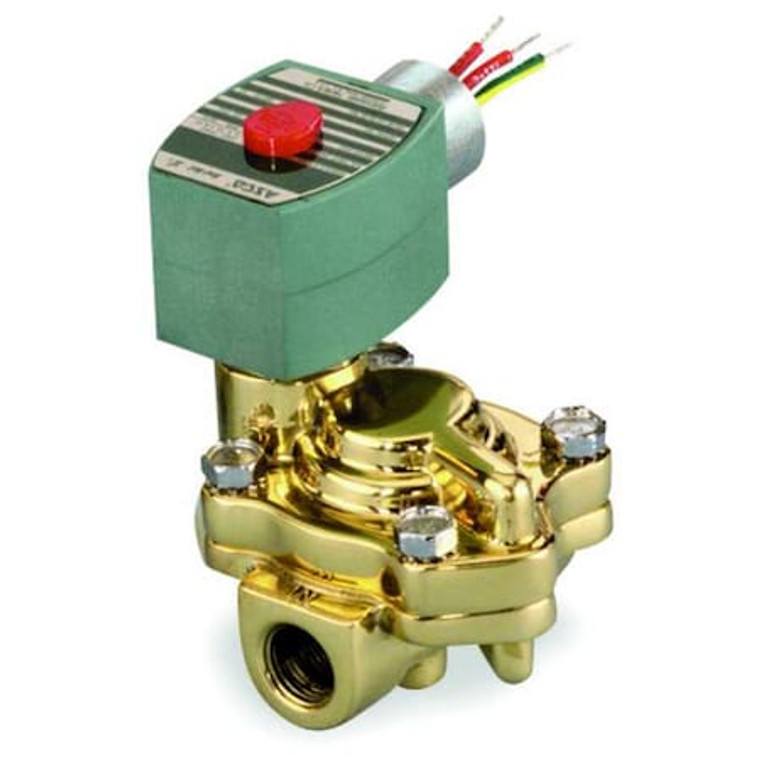

120V AC Brass Slow Closing Solenoid Valve, Normally Closed, 1 in Pipe Size - 8221G007

120V AC Brass Slow Closing Solenoid Valve, Normally Closed, 1 in Pipe Size - 8221G007

Redhat
SKU:
8221G007
|
UPC:
94700469465
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Slow-Closing, Nominal Pipe Size 1 in, Orifice Diameter 1 in, Body Material Brass, Coefficient of Volume (Cv) 3, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1 in
Center Line Pipe Center Size:
4 in
Electrical Connections:
1/2 Conduit w/18" Leads"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Slow Closing Solenoid Valve
Orifice Dia.:
1 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Brass
Overall Length:
3 3/4 in
Watts:
6.1 W
Environmental Rating - Valves:
Indoor, Outdoor
Valve Ways and Positions:
2-Way/2-Position
Application:
To Protect Against the Water Hammer Problems Experienced in Many Water and Light Oil Applications
IP Rating:
66
Media:
Water
Coefficient of Volume:
11.5
Seal Material - Valves:
NBR
Seal Material:
NBR
Overall Width:
3 3/16 in
Max. Operating Pressure Differential Water:
150 psi
Overall Height:
5 5/8 in
Max. Fluid Temp.:
180 Degrees F
Hz:
50/60
Coil Enclosure:
Watertight No Junction Box
Pipe Size:
1";Min. Operating Pressure Differential=5 psi"
Coil Insulation Class:
F
Body Material:
Brass
Max. Operating Pressure Differential Light Oil:
Not Rated
NEMA Rating:
1, 2, 3, 3S, 4, 4X
Standards:
CSA, UL Listed
Operation Type:
Pilot Operated
Center Le Pipe Center Size:
4""
Products By Industry:
Food Processing;General Approach
Operating Pressure Differential Cryogenic Fluid - Minimum:
Not Applicable
Wattage:
6.1 W
Inlet Connection Type:
NPTF
NEMA Enclosure Rating:
1, 2, 3, 3S, 4, 4X
Valve Type:
Slow-Closing
Operating Pressure Differential Cryogenic Fluid - Maximum:
Not Applicable
Includes Coil:
Yes
Valve Ways:
2-Way
Valve Starting Configuration:
Normally Closed
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Operating Pressure Differential Steam - Maximum:
Not Rated
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
Coefficient of Volume (Cv):
3
Operating Pressure Differential Steam - Minimum:
Not Applicable
Operating Pressure Differential Light Oil - Maximum:
Not Rated
Operating Pressure Differential Liquid CO2 - Minimum:
Not Applicable
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
Operating Pressure Differential Hot Water - Minimum:
Not Applicable
Includes Seal:
Yes
Environmental Rating:
Corrosive, Hazardous, Indoor, Outdoor
Frequency:
50 Hz, 60 Hz
Operating Pressure Differential Water - Maximum:
150 psi
Valve Positions:
2-Position
For Media:
Water
Operating Pressure Differential Liquid CO2 - Maximum:
Not Applicable
Nominal Pipe Size:
1 in
Outlet Connection Type:
NPTF
Operating Pressure Differential Water - Minimum:
5 psi
Fluid Temperature - Maximum:
180 Degrees F
Operating Pressure Differential - Minimum:
5 psi
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Operating Pressure Differential Hot Water - Maximum:
150 psi
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Orifice Diameter:
1 in
Operating Pressure Differential - Maximum:
150 psi
Thread Type:
NPT
Operating Pressure Differential Air/Inert Gas - Maximum:
Not Rated
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Package Quantity:
1
