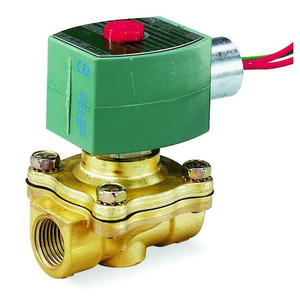

120V AC Brass Hot Water Solenoid Valve, Normally Closed, 3/4 in Pipe Size - 8221G005HW

120V AC Brass Hot Water Solenoid Valve, Normally Closed, 3/4 in Pipe Size - 8221G005HW

Redhat
SKU:
8221G005HW
|
UPC:
94703422627
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Slow-Closing, Nominal Pipe Size 3/4 in, Orifice Diameter 3/4 in, Body Material Brass, Coefficient of Volume (Cv) 3, Operating Pressure Differential Air/Inert Gas - Maximum 150 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material EPDM, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Without Junction Box, Watertight
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
3/4 in
Center Line Pipe Center Size:
3 9/16 in
Electrical Connections:
1/2 Conduit w/18" Leads"
Valve Design:
2-Way/2-Position
Voltage:
120V AC
Item:
Hot Water Solenoid Valve
Orifice Dia.:
3/4 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Brass
Watts:
6.1 W
Coil Insulation Class:
F
Max. Operating Pressure Differential Hot Water:
150 psi
Coil Enclosure:
Watertight No Junction Box
Min. Operating Pressure Differential:
5 psi
Coefficient of Volume:
5.5
Max. Fluid Temp. Hot Water:
210 Degrees F
Media:
Hot Water
Body Material:
Brass
Hz:
60/50
Overall Width:
3 29/64 in
Overall Length:
2 23/32 in
Pipe Size:
3/4";Valve Ways and Positions=2-Way/2-Position"
Environmental Rating - Valves:
Indoor, Outdoor
Max. Fluid Temp. Steam:
Not Rated
Ambient Temp. Range:
125 Degrees F
Overall Height:
4 5/16 in
NEMA Rating:
1, 2, 3, 3S, 4, 4X
Operation Type:
Pilot Operated
Seal Material:
EPDM
Application:
Autoclave, Laundry, Molding, Sterilizers
Standards:
CSA, UL Listed
Center Le Pipe Center Size:
3 9/16""
Operating Pressure Differential Liquid CO2 - Minimum:
Not Applicable
Operating Pressure Differential Steam - Maximum:
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum:
150 psi
Inlet Connection Type:
NPTF
For Media:
Hot Water
Operating Pressure Differential Fuel Oil - Maximum:
Not Applicable
Frequency:
50 Hz, 60 Hz
Valve Positions:
2-Position
Operating Pressure Differential Natural Gas - Minimum:
Not Applicable
Operating Pressure Differential Natural Gas - Maximum:
Not Applicable
Valve Type:
Slow-Closing
Includes Seal:
Yes
Nominal Pipe Size:
3/4 in
Operating Pressure Differential - Maximum:
150 psi
Wattage:
6.1 W
Operating Pressure Differential Hot Water - Maximum:
150 psi
Valve Starting Configuration:
Normally Closed
NEMA Enclosure Rating:
1, 2, 3, 3S, 4, 4X
Outlet Connection Type:
NPTF
Operating Pressure Differential Fuel Gas - Minimum:
Not Applicable
Operating Pressure Differential Hot Water - Minimum:
Not Applicable
Operating Pressure Differential Cryogenic Fluid - Maximum:
Not Applicable
Environmental Rating:
Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Water - Maximum:
Not Rated
Coefficient of Volume (Cv):
3
Operating Pressure Differential Light Oil - Maximum:
Not Rated
Operating Pressure Differential Fuel Oil - Minimum:
Not Applicable
Operating Pressure Differential Water - Minimum:
5 psi
Operating Pressure Differential Liquid CO2 - Maximum:
Not Applicable
Fluid Temperature - Maximum:
210 Degrees F
Includes Coil:
Yes
Operating Pressure Differential Steam - Minimum:
Not Applicable
Thread Type:
NPT
Operating Pressure Differential Cryogenic Fluid - Minimum:
Not Applicable
Operating Pressure Differential - Minimum:
5 psi
Orifice Diameter:
3/4 in
Operating Pressure Differential Fuel Gas - Maximum:
Not Applicable
Valve Ways:
2-Way
Package Quantity:
1
