118° Taper Length Drill Cleveland 2510 Steam Oxide HSS RHS/RHC 29/32 - C08894

118° Taper Length Drill Cleveland 2510 Steam Oxide HSS RHS/RHC 29/32 - C08894

Cleveland
SKU:
C08894
|
UPC:
697334088943
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

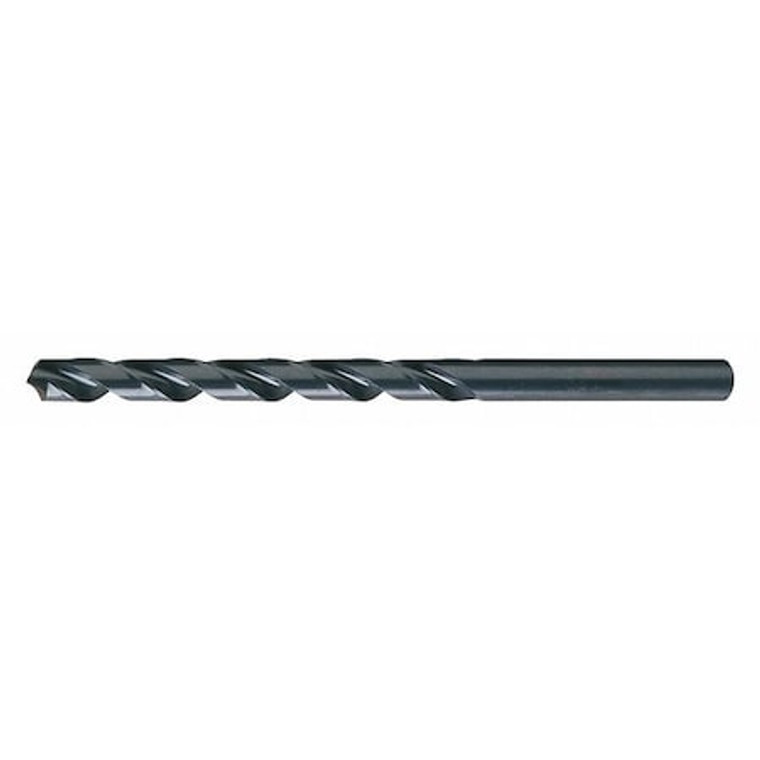

Taper Length Drill Bit, Drill Bit Size 29/32 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Taper Length Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Shank Type:
Straight
Drill Bit Size:
29/32 in
Drill Bit Point Angle:
118 Degrees
Decimal Equivalent:
0.9062
Drill Bit Material:
High Speed Steel
Drill Bit Finish:
Black Oxide
Flute Type:
Spiral
Shank Dia.:
29/32 in
Overall Length:
10 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
6 1/8 in
Maximum Drilling Depth:
6 1/8 in
Sizes Included:
29/32";Grade=General Purpose"
Application:
For Drilling Carbon Steel, Alloy Steel and Cast Iron.
Coolant Through:
No
Standards:
ASME B94.11M-1993
List Number:
2510
Depth x Dia. Ratio:
4xD
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Finish - Machining:
Black Oxide
Shank Length:
3 7/8 in
Drill Point Length:
0.2723 in
Material Grade - Machining:
General Purpose
Measurement System:
Fractional Inch
Helix Angle:
21 Degrees /34 Degrees
Series:
2510
Primary Material Application ISO Code:
K, P
Drill Bit Point Type:
Conventional Point
Drill Length Class:
Taper Length
Spiral Direction:
Right Hand
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Shank Type - Machining:
Straight
Primary Material Application:
Cast Iron, Steel
Material - Machining:
High Speed Steel
Package Quantity:
1
