118° Taper Length Drill Cleveland 2510 Steam Oxide HSS RHS/RHC 15/16 - C08897

118° Taper Length Drill Cleveland 2510 Steam Oxide HSS RHS/RHC 15/16 - C08897

Cleveland
SKU:
C08897
|
UPC:
697334088974
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

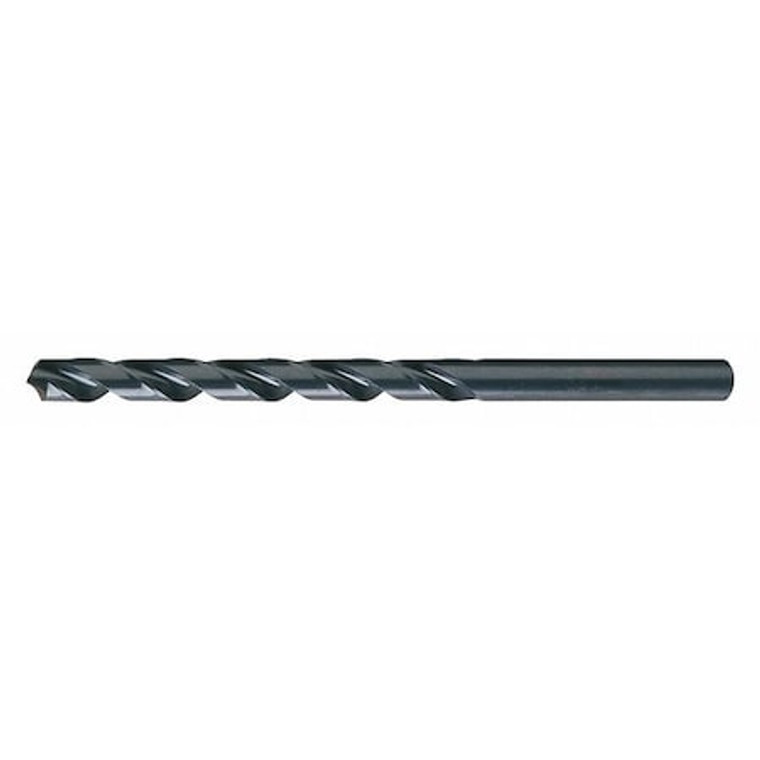

Taper Length Drill Bit, Drill Bit Size 15/16 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Drill Bit Grouping:
Drill Bit
Item:
Taper Length Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
15/16 in
Shank Type:
Straight
Drill Bit Point Angle:
118 Degrees
Drill Bit Material:
High Speed Steel
Decimal Equivalent:
0.9375
Drill Bit Finish:
Black Oxide
Flute Type:
Spiral
Shank Dia.:
15/16 in
Overall Length:
1 3/4 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
6 1/8 in
Maximum Drilling Depth:
6 1/8 in
List Number:
2510
Coolant Through:
No
Application:
For Drilling Carbon Steel, Alloy Steel and Cast Iron.
Standards:
ASME B94.11M-1993
Grade:
General Purpose
Sizes Included:
15/16";Depth x Dia. Ratio=4xD"
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Primary Material Application ISO Code:
K, P
Shank Length:
4 5/8 in
Spiral Direction:
Right Hand
Shank Type - Machining:
Straight
Drill Length Class:
Taper Length
Drill Point Length:
0.2817 in
Primary Material Application:
Cast Iron, Steel
Material Grade - Machining:
General Purpose
Material - Machining:
High Speed Steel
Drill Bit Point Type:
Conventional Point
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Finish - Machining:
Black Oxide
Measurement System:
Fractional Inch
Series:
2510
Helix Angle:
21 Degrees /34 Degrees
Package Quantity:
1
