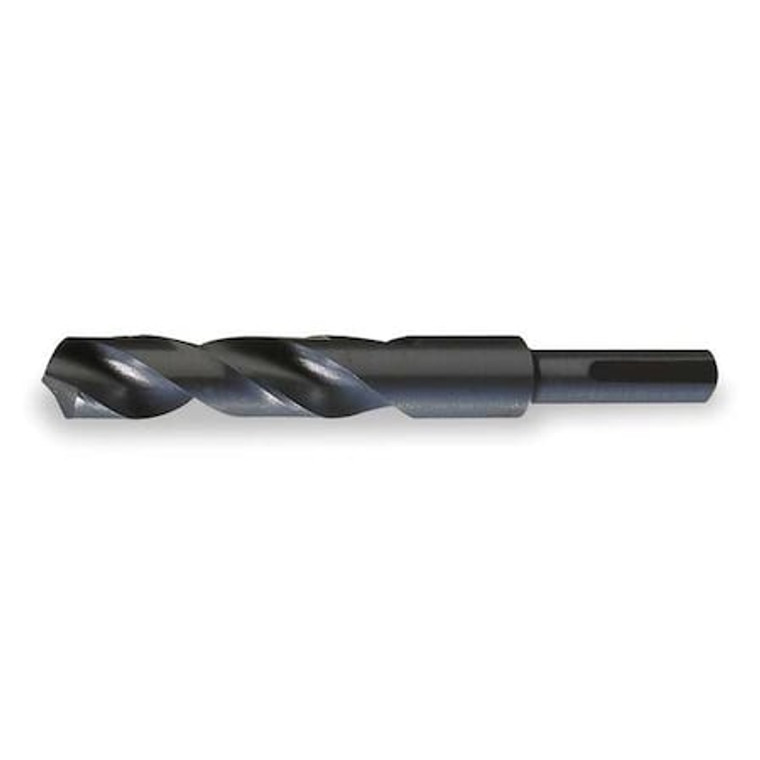

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190F Steam Oxide HSS RHS/RHC 19/32 - 52438

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190F Steam Oxide HSS RHS/RHC 19/32 - 52438

Chicago-Latrobe
SKU:
52438
|
UPC:
662355524381
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Reduced Shank Drill Bit, Drill Bit Size 19/32 in, 118 Degrees Drill Bit Point Angle, Material - Machining High Speed Steel, Finish - Machining Black Oxide
Additional Information
Country of Origin:
United States
Shank Dia.:
1/2 in
Drill Bit Size:
19/32 in
Overall Length:
6 in
Number of Flutes:
2
Flute Length:
3 1/8 in
Item:
Reduced Shank Drill Bit
Drill Bit Material:
High Speed Steel
Drill Bit Point Angle:
118 Degrees
Drill Bit Finish:
Black Oxide
Cutting Direction:
Right Hand
Shank Type:
Round with Flats
Flute Type:
Spiral
Application:
For Alloy And Carbon Steel, Cast Iron And Wood
Decimal Equivalent:
0.5938
Grade:
General Purpose
Depth:
Dia. Ratio
Drill Bit Dimension Type:
Fractional Inch
Number of Pieces:
1
Drill Bit Grouping:
Drill Bit
List Number:
190F
Depth x Dia. Ratio:
4xD
Shank Length:
2 1/4 in
Point Angle:
118
Left/Right Hand:
Right
Drill Style:
Silver & Deming Drill
Diameter:
0.59375
Measurement System:
Fractional Inch
Material:
HSS
Shank Size:
0.5
Coolant Fed:
Non-Coolant Through
Standards:
ISO
Spiral Direction:
Right Hand
Material Grade - Machining:
General Purpose
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Silver & Deming Drill:
Yes
Drill Bit Point Type:
Split Point
Helix Angle:
28 Degrees
Shank Type - Machining:
Straight with Three Flats
Series:
190F
Material - Machining:
High Speed Steel
Finish - Machining:
Black Oxide
Primary Material Application:
Cast Iron, Steel, Wood
Primary Material Application ISO Code:
K, P
Maximum Drilling Depth:
2 3/8 in
Package Quantity:
1
