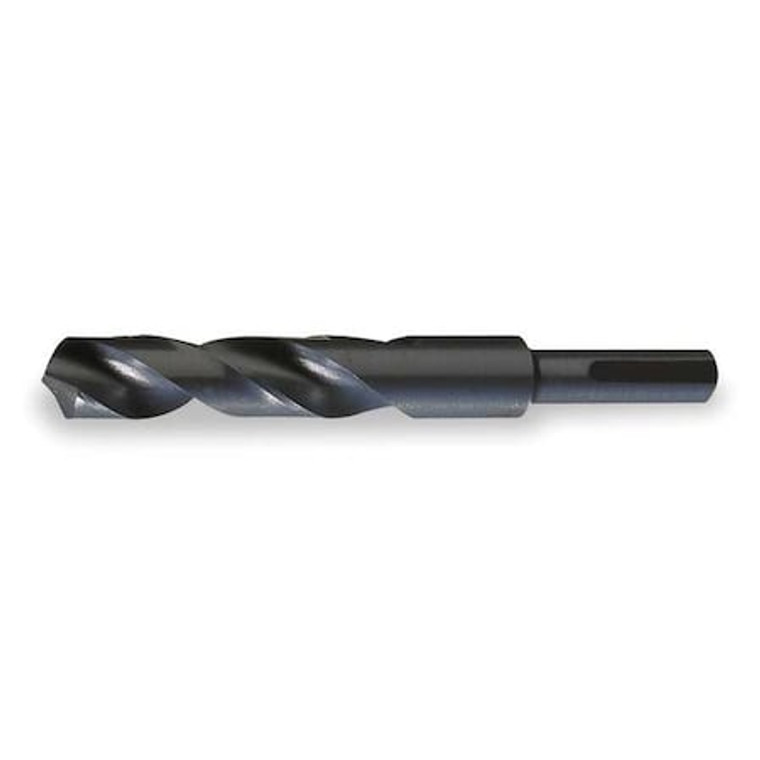

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190F Steam Oxide HSS RHS/RHC 13/16 - 52452

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190F Steam Oxide HSS RHS/RHC 13/16 - 52452

Chicago-Latrobe
SKU:
52452
|
UPC:
662355524527
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Reduced Shank Drill Bit, Drill Bit Size 13/16 in, 118 Degrees Drill Bit Point Angle, Material - Machining High Speed Steel, Finish - Machining Black Oxide
Additional Information
Country of Origin:
United States
Shank Dia.:
3/8 in
Drill Bit Size:
13/16 in
Overall Length:
6 in
Number of Flutes:
2
Flute Length:
3 1/8 in
Item:
Reduced Shank Drill Bit
Drill Bit Material:
High Speed Steel
Drill Bit Point Angle:
118 Degrees
Drill Bit Finish:
Black Oxide
Cutting Direction:
Right Hand
Shank Type:
Round with Flats
Decimal Equivalent:
0.8125
Drill Bit Grouping:
Drill Bit
List Number:
190F
Grade:
General Purpose
Application:
For Alloy And Carbon Steel, Cast Iron And Wood
Flute Type:
Spiral
Drill Bit Dimension Type:
Fractional Inch
Depth:
Dia. Ratio
Number of Pieces:
1
Depth x Dia. Ratio:
4xD
Drill Style:
Silver & Deming Drill
Measurement System:
Fractional Inch
Point Angle:
118
Shank Length:
2 1/4 in
Left/Right Hand:
Right
Shank Size:
0.5
Material:
HSS
Diameter:
0.8125
Coolant Fed:
Non-Coolant Through
Standards:
ISO
Finish - Machining:
Black Oxide
Maximum Drilling Depth:
3 1/4 in
Material Grade - Machining:
General Purpose
Silver & Deming Drill:
Yes
Material - Machining:
High Speed Steel
Series:
190F
Spiral Direction:
Right Hand
Helix Angle:
28 Degrees
Shank Type - Machining:
Straight with Three Flats
Primary Material Application ISO Code:
K, P
Primary Material Application:
Cast Iron, Steel, Wood
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Drill Bit Point Type:
Split Point
Package Quantity:
1
