118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190C Straw HSS-CO RHS/RHC 25/32 - 53450

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190C Straw HSS-CO RHS/RHC 25/32 - 53450

Chicago-Latrobe
SKU:
53450
|
UPC:
662355534502
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

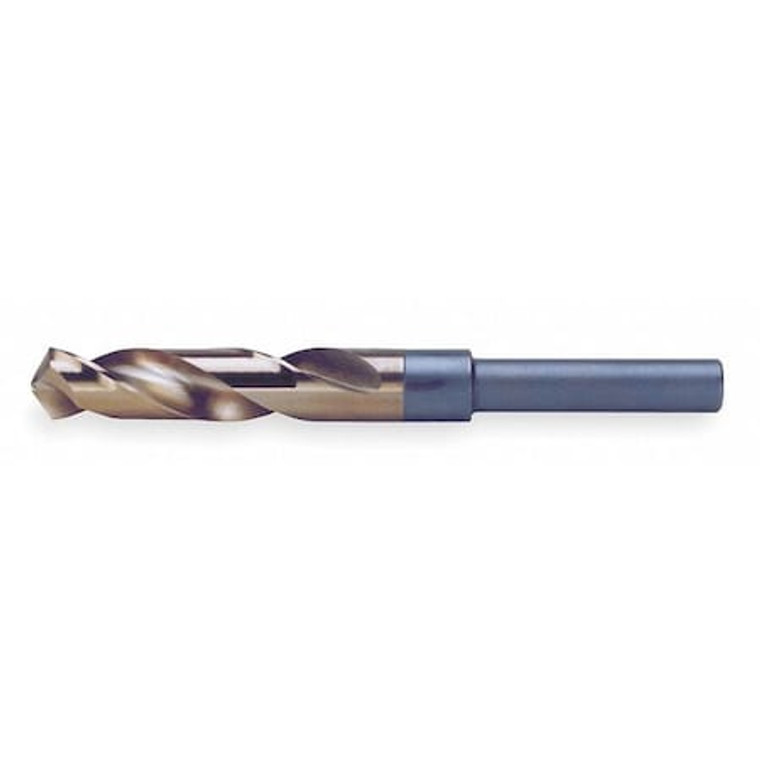

Reduced Shank Drill Bit, Drill Bit Size 25/32 in, 118 Degrees Drill Bit Point Angle, Material - Machining Cobalt, Finish - Machining Straw/Bronze
Additional Information
Country of Origin:
United States
Shank Dia.:
1/2 in
Drill Bit Size:
25/32 in
Overall Length:
6 in
Number of Flutes:
2
Flute Length:
3 1/8 in
Item:
Reduced Shank Drill Bit
Drill Bit Material:
Cobalt Steel
Drill Bit Point Angle:
118 Degrees
Drill Bit Finish:
Straw/Bronze
Cutting Direction:
Right Hand
Shank Type:
Round
List Number:
190C
Depth:
Dia. Ratio
Drill Bit Grouping:
Drill Bit
Grade:
General Purpose
Depth x Dia. Ratio:
4xD
Flute Type:
Spiral
Decimal Equivalent:
0.7812
Drill Bit Dimension Type:
Fractional Inch
Number of Pieces:
1
Application:
For Alloy And Carbon Steel And Cast Iron
Coolant Fed:
Non-Coolant Through
Material - Machining:
Cobalt
Primary Material Application:
Cast Iron, Steel
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Series:
190C
Maximum Drilling Depth:
2 1/2 in
Measurement System:
Fractional Inch
Shank Type - Machining:
Straight
Finish - Machining:
Straw/Bronze
Material Grade - Machining:
M42
Helix Angle:
28 Degrees
Drill Bit Point Type:
Split Point
Primary Material Application ISO Code:
K, P
Shank Length:
2 1/4 in
Silver & Deming Drill:
No
Spiral Direction:
Right Hand
Standards:
Not Rated
Package Quantity:
1
