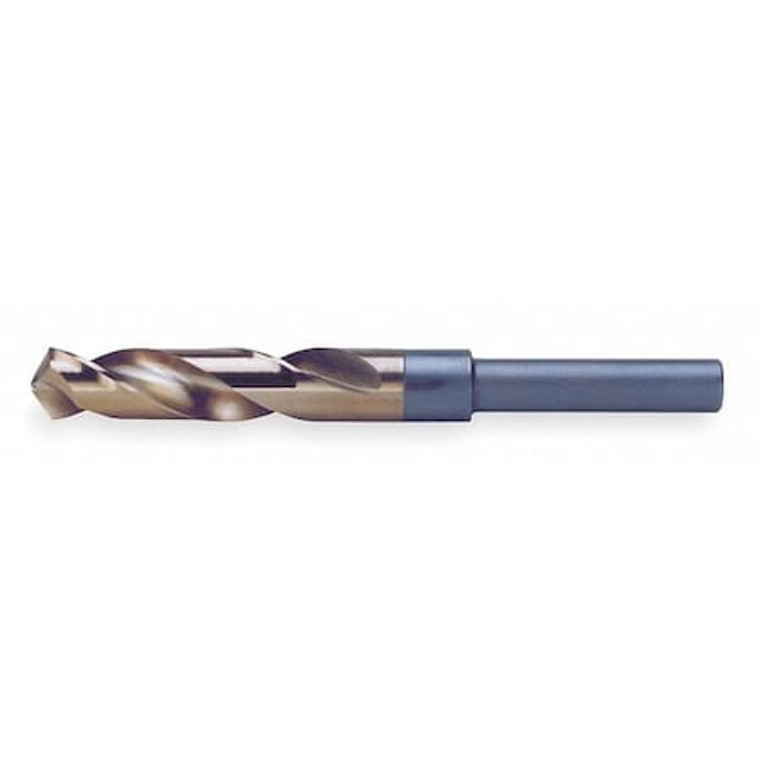

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190C Straw HSS-CO RHS/RHC 21/32 - 53442

118° Silver & Deming Drill with 1/2 Reduced Shank Chicago-Latrobe 190C Straw HSS-CO RHS/RHC 21/32 - 53442

Chicago-Latrobe
SKU:
53442
|
UPC:
662355534427
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Reduced Shank Drill Bit, Drill Bit Size 21/32 in, 118 Degrees Drill Bit Point Angle, Material - Machining Cobalt, Finish - Machining Straw/Bronze
Additional Information
Country of Origin:
United States
Shank Dia.:
1/2 in
Drill Bit Size:
21/32 in
Overall Length:
6 in
Number of Flutes:
2
Flute Length:
3 1/8 in
Item:
Reduced Shank Drill Bit
Drill Bit Material:
Cobalt Steel
Drill Bit Point Angle:
118 Degrees
Drill Bit Finish:
Straw/Bronze
Cutting Direction:
Right Hand
Shank Type:
Round
Decimal Equivalent:
0.6562
Number of Pieces:
1
Flute Type:
Spiral
Drill Bit Grouping:
Drill Bit
Application:
For Alloy And Carbon Steel And Cast Iron
Depth:
Dia. Ratio
Drill Bit Dimension Type:
Fractional Inch
Grade:
General Purpose
Depth x Dia. Ratio:
4xD
List Number:
190C
Coolant Fed:
Non-Coolant Through
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Shank Length:
2 1/4 in
Measurement System:
Fractional Inch
Helix Angle:
28 Degrees
Material - Machining:
Cobalt
Silver & Deming Drill:
Yes
Drill Bit Point Type:
Split Point
Primary Material Application:
Cast Iron, Steel
Spiral Direction:
Right Hand
Shank Type - Machining:
Straight
Primary Material Application ISO Code:
K, P
Maximum Drilling Depth:
2 1/2 in
Material Grade - Machining:
M42
Series:
190C
Finish - Machining:
Straw/Bronze
Standards:
Not Rated
Package Quantity:
1
