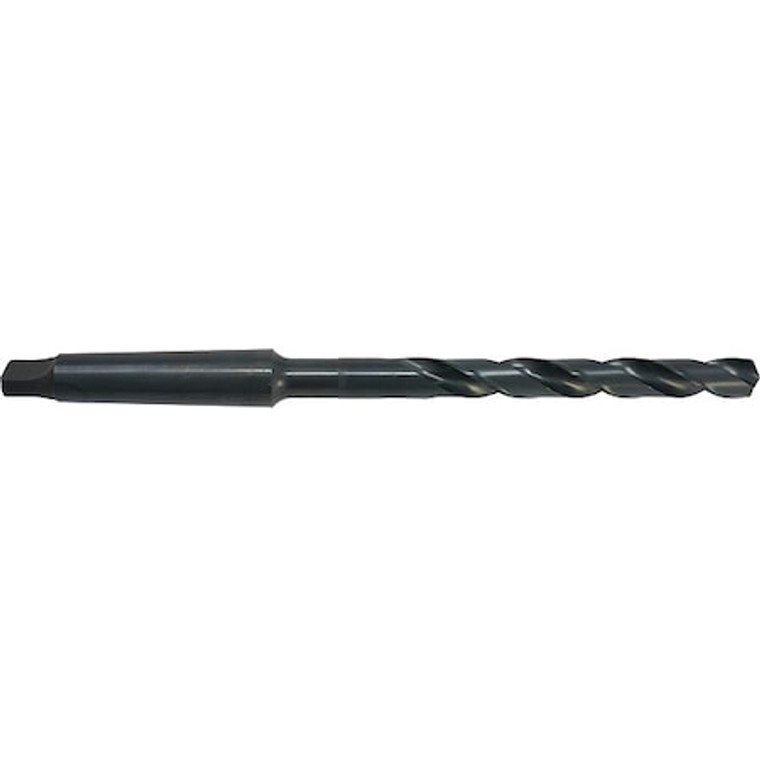

118° General Purpose Taper Shank Drill Cle-Line 1894 Steam Oxide HSS RHS/RHC 1-13/64 - C20577

118° General Purpose Taper Shank Drill Cle-Line 1894 Steam Oxide HSS RHS/RHC 1-13/64 - C20577

Cle-Line
SKU:
C20577
|
UPC:
697334205777
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Taper Shank Drill Bit, Drill Bit Size 1 13/64 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Item:
Taper Shank Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
1 13/64 in
Drill Bit Point Angle:
118 Degrees
Decimal Equivalent:
1.2031
Drill Bit Finish:
Black Oxide
Flute Type:
Spiral
Overall Length:
13 1/8 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
7 1/2 in
Maximum Drilling Depth:
7 1/2 in
Depth:
Dia. Ratio
Depth x Dia. Ratio:
4xD
Application:
General Purpose Drilling
Standards:
ASME B94.11M
Coolant Fed:
Non-Coolant Through
Series:
1894
Measurement System:
Fractional Inch
Drill Diameter Tolerance:
+0.0000 in /-0.0015 in
Primary Material Application ISO Code:
K, P
Primary Material Application:
Cast Iron, Steel
Spiral Direction:
Right Hand
Finish - Machining:
Black Oxide
Helix Angle:
21 Degrees to 34 Degrees
Shank Type - Machining:
Taper
Drill Bit Point Type:
Conventional Point
Material - Machining:
High Speed Steel
Taper Shank Size:
MT4
Package Quantity:
1
