118° General Purpose Taper Shank Drill Cle-Line 1894 Steam Oxide HSS RHS/RHC 1-1/32 - C20566

118° General Purpose Taper Shank Drill Cle-Line 1894 Steam Oxide HSS RHS/RHC 1-1/32 - C20566

Cle-Line
SKU:
C20566
|
UPC:
697334205661
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

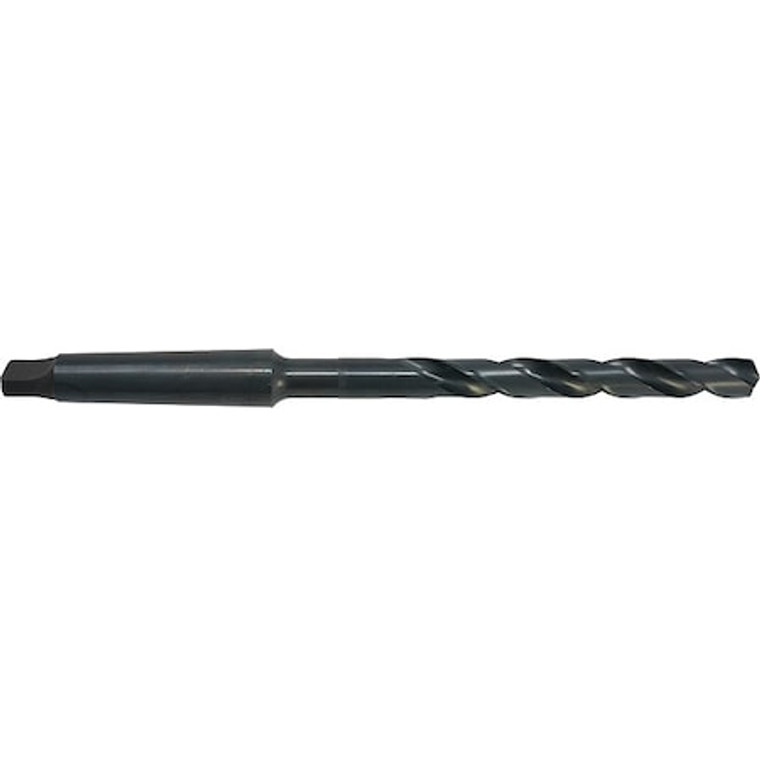

Taper Shank Drill Bit, Drill Bit Size 1 1/32 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Item:
Taper Shank Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
1 1/32 in
Drill Bit Point Angle:
118 Degrees
Decimal Equivalent:
1.0039
Drill Bit Finish:
Black Oxide
Flute Type:
Spiral
Overall Length:
11 1/8 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
6 1/2 in
Maximum Drilling Depth:
6 1/2 in
Depth:
Dia. Ratio
Application:
General Purpose Drilling
Depth x Dia. Ratio:
4xD
Standards:
ASME B94.11M
Coolant Fed:
Non-Coolant Through
Series:
1894
Drill Diameter Tolerance:
+0.0000 in /-0.0015 in
Material - Machining:
High Speed Steel
Measurement System:
Fractional Inch
Spiral Direction:
Right Hand
Taper Shank Size:
MT3
Primary Material Application ISO Code:
K, P
Finish - Machining:
Black Oxide
Shank Type - Machining:
Taper
Primary Material Application:
Cast Iron, Steel
Helix Angle:
21 Degrees to 34 Degrees
Drill Bit Point Type:
Conventional Point
Package Quantity:
1
