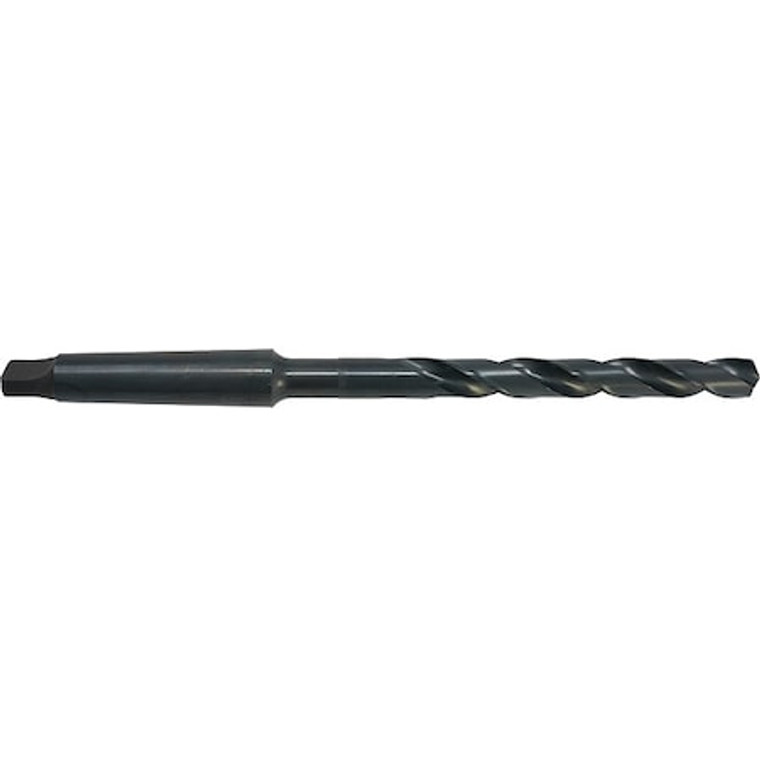

118° General Purpose Taper Shank Drill Chicago-Latrobe 110 Steam Oxide HSS RHS/RHC 47/64 - 53147

118° General Purpose Taper Shank Drill Chicago-Latrobe 110 Steam Oxide HSS RHS/RHC 47/64 - 53147

Chicago-Latrobe
SKU:
53147
|
UPC:
662355531471
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Taper Shank Drill Bit, Drill Bit Size 47/64 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Item:
Taper Shank Drill Bit
Number of Flutes:
2
Overall Length:
9 3/4 in
Drill Bit Size:
47/64 in
Flute Length:
5 7/8 in
Cutting Direction:
Right Hand
Decimal Equivalent:
0.7344
Drill Bit Point Angle:
118 Degrees
Drill Bit Material:
High Speed Steel
Flute Type:
Spiral
List Number:
110
Application:
For Alloy, Carbon And Tool Steels And Cast Iron
Depth:
Dia. Ratio
Drill Bit Finish:
Black Oxide
Drill Bit Dimension Type:
Fractional Inch
Grade:
General Purpose
Morse Taper:
2
Drill Bit Grouping:
Drill Bit
Depth x Dia. Ratio:
4xD
Standards:
American National Standard (Morse)
Series:
110
Coolant Fed:
Non-Coolant Through
Finish - Machining:
Black Oxide
Spiral Direction:
Right Hand
Material - Machining:
High Speed Steel
Shank Type - Machining:
Taper
Material Grade - Machining:
General Purpose
Drill Bit Point Type:
Conventional Point
Primary Material Application:
Cast Iron, Steel, Tool and Die Steel
Primary Material Application ISO Code:
K, P
Taper Shank Size:
MT2
Helix Angle:
28 Degrees
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Measurement System:
Fractional Inch
Maximum Drilling Depth:
5 7/8 in
Package Quantity:
1
