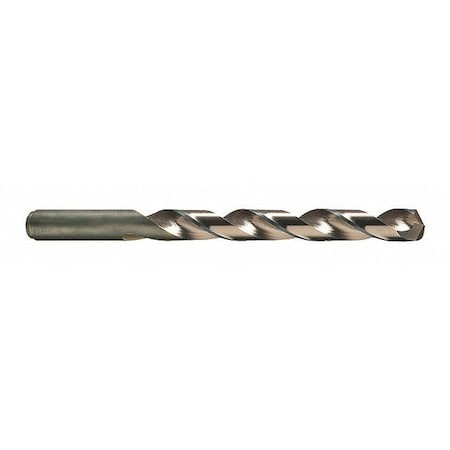

118° General Purpose Jobber Length Drill Chicago-Latrobe 150D Bright HSS RHS/RHC 43/64 - 44243

118° General Purpose Jobber Length Drill Chicago-Latrobe 150D Bright HSS RHS/RHC 43/64 - 44243

Chicago-Latrobe
SKU:
44243
|
UPC:
662355442432
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Jobber Length Drill Bit, Drill Bit Size 43/64 in, Drill Bit Point Angle 118 Degrees , High Speed Steel, Bright (Uncoated), Decimal Equivalent 0.6719, Fractional Inch, Drill Bit Point Type Conventional Point, Non-Coolant Through, Number of Coolant Holes 0
Additional Information
Country of Origin:
United States
Item:
Jobber Length Drill Bit
Drill Bit Grouping:
Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
43/64 in
Drill Bit Point Angle:
118 Degrees
Decimal Equivalent:
0.6719
Measurement System:
Fractional Inch
Flute Type:
Spiral
Drill Bit Point Type:
Conventional Point
Coolant Fed:
Non-Coolant Through
Shank Dia.:
43/64 in
Material - Machining:
High Speed Steel
Overall Length:
7-5/8 in
Finish - Machining:
Bright (Uncoated)
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
5-5/8 in
Maximum Drilling Depth:
4 7/32 in
Number of Pieces:
1
Depth:
Dia. Ratio
List Number:
150D
Application:
For Non-Ferrous Materials
Standards:
ANSI
Shank Length:
2 in
Helix Angle:
21 Degrees to 34 Degrees
Primary Material Application:
Aluminum and Non-Ferrous Material
Drill Diameter Tolerance:
+0.0000 in/-0.0012 in
Drill Point Length:
0.2019 in
Spiral Direction:
Right Hand
Material Grade - Machining:
General Purpose
Drill Length Class:
Jobber Length
Series:
150D
Shank Type - Machining:
Straight
Primary Material Application ISO Code:
N
Sheeter Drill:
No
Web Thinning:
Thinned
Number of Coolant Holes:
0
Aircraft Drill:
No
Package Quantity:
1
