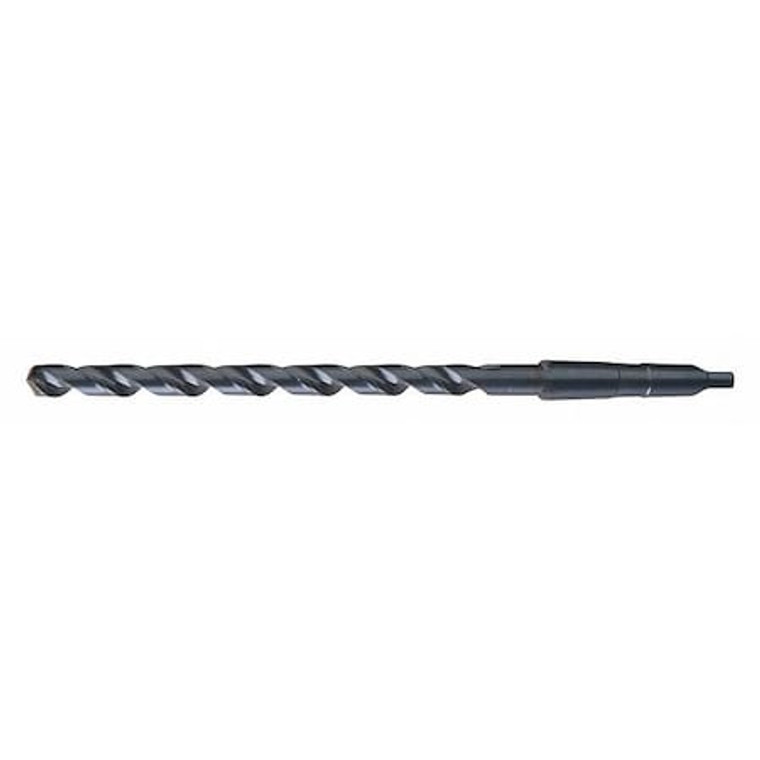

118° Extra Length Taper Shank Drill Cleveland 940E Steam Oxide HSS RHS/RHC 1/2 - C13831

118° Extra Length Taper Shank Drill Cleveland 940E Steam Oxide HSS RHS/RHC 1/2 - C13831

Cleveland
SKU:
C13831
|
UPC:
697334138310
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Taper Shank Drill Bit, Drill Bit Size 1/2 in, Drill Bit Point Angle 118 Degrees , Notched Point, High Speed Steel, Black Oxide
Additional Information
Country of Origin:
United States
Item:
Taper Shank Drill Bit
Drill Bit Dimension Type:
Fractional Inch
Drill Bit Size:
1/2 in
Shank Type:
Taper
Drill Bit Point Angle:
118 Degrees
Drill Bit Material:
High Speed Steel
Decimal Equivalent:
0.5000
Drill Bit Finish:
Steam Oxide
Flute Type:
Spiral
Overall Length:
12 in
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
8 in
Maximum Drilling Depth:
8 in
Standards:
ASME B94.11M-1993
Application:
For Drilling Carbon Steel, Plastic and Cast Iron Material
Morse Taper:
#2
List Number:
940E
Coolant Through:
No
Grade:
Heavy-Duty
Point Type:
Notched
Depth x Dia. Ratio:
4xD
Coolant Fed:
Non-Coolant Through
Depth:
Dia. Ratio
Series:
940E
Drill Bit Point Type:
Notched Point
Drill Diameter Tolerance:
+0.0000 in /-0.0010 in
Taper Shank Size:
MT2
Measurement System:
Fractional Inch
Material - Machining:
High Speed Steel
Finish - Machining:
Black Oxide
Secondary Material Application:
Cast Iron
Shank Type - Machining:
Taper
Secondary Material Application ISO Code:
K
Primary Material Application:
Cast Iron, Steel
Spiral Direction:
Right Hand
Primary Material Application ISO Code:
K, P
Helix Angle:
35 Degrees to 45 Degrees
Material Grade - Machining:
High Performance
Package Quantity:
1
