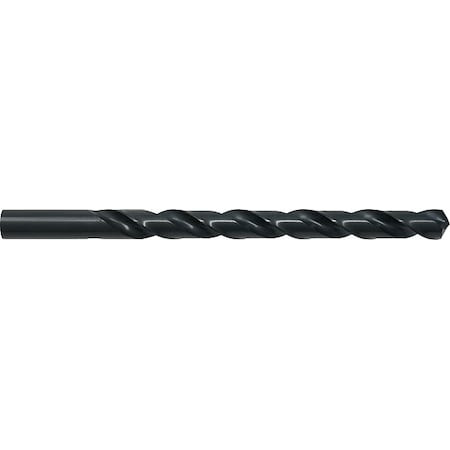

118° Extra Length Drill Cle-Line 1806 Steam Oxide HSS RHS/RHC 11/16x12IN - C20472

118° Extra Length Drill Cle-Line 1806 Steam Oxide HSS RHS/RHC 11/16x12IN - C20472

Cle-Line
SKU:
C20472
|
UPC:
697334204725
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extra Long Drill Bit, Drill Bit Size 11/16 in, Drill Bit Point Angle 118 Degrees , Notched Point, High Speed Steel, Black Oxide, 21 Degrees to 34 Degrees , Maximum Drilling Depth 2 3/4 in, Fractional Inch, 4xD
Additional Information
Country of Origin:
United States
Item:
Extra Long Drill Bit
Drill Bit Size:
11/16 in
Drill Bit Point Angle:
118 Degrees
Decimal Equivalent:
0.6875
Measurement System:
Fractional Inch
Flute Type:
Spiral
Drill Bit Point Type:
Notched Point
Coolant Fed:
Non-Coolant Through
Shank Dia.:
11/16 in
Material - Machining:
High Speed Steel
Overall Length:
12 in
Finish - Machining:
Black Oxide
Cutting Direction:
Right Hand
Number of Flutes:
2
Flute Length:
9 in
Maximum Drilling Depth:
2 3/4 in
Depth:
Dia. Ratio
Standards:
ASME B94.11M
Shank Type - Machining:
Straight
Spiral Direction:
Right Hand
Shank Length:
3 in
Primary Material Application ISO Code:
K, P
Primary Material Application:
Cast Iron, Steel
Helix Angle:
21 Degrees to 34 Degrees
Series:
1806
Drill Length Class:
Extra Long
Drill Point Length:
0.2065 in
Drill Diameter Tolerance:
+0.0000 in /-0.0012 in
Package Quantity:
1
