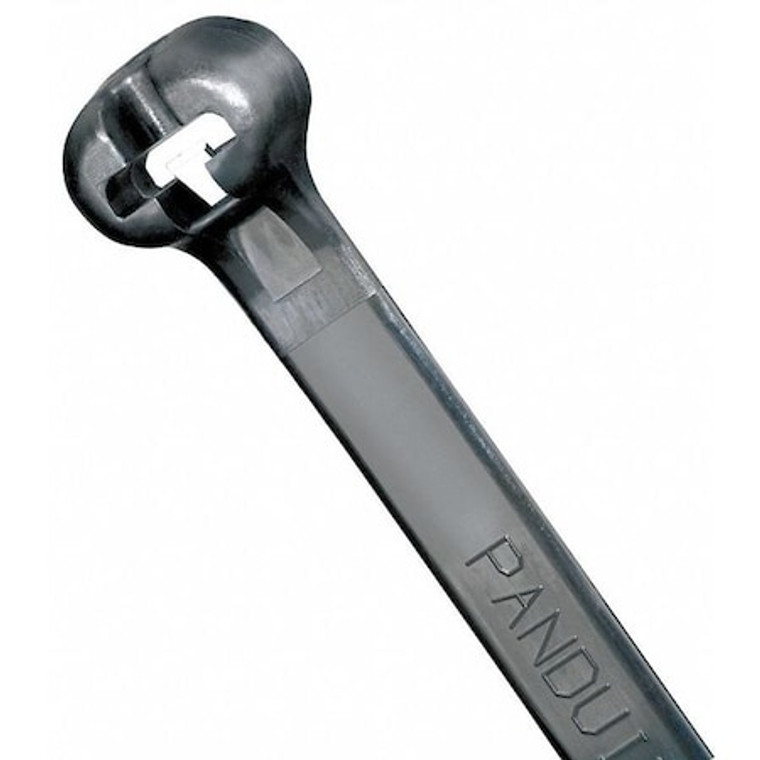

11.3" L Intermediate Cable Tie BK PK 1000 - BT3I-M0

11.3" L Intermediate Cable Tie BK PK 1000 - BT3I-M0

Panduit
SKU:
BT3I-M0
|
UPC:
74983413713
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Cable Tie, Standard, Actual Length 11.3 in, Width 0.14 in, Nominal Length 11 1/2 in, Locking Style Stainless Steel Barb, Color Black, Basic Material - Cable Tie Nylon, Tensile Strength 40 lb, Halogen-Free, Low-Smoke, Plenum Rated, UV Light Resistant, Weather Resistant, Intermediate, Nominal Max. Bundle Dia. 3 in, Temp. Range -76 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use Yes, Plenum Rated Yes, UL Type 2, Thickness 0.05 in
Additional Information
Country of Origin:
Costa Rica
Item:
Cable Tie
Cable Tie Style:
Standard
Length:
11.3";Nominal Length=11 1/2 in"
Width:
0.14";Max. Bundle Dia.=3.00""
Color:
Black
Material:
Nylon 6/6
Tensile Strength:
40 lb.
Indoor/Outdoor:
Indoor, Outdoor
Basic Material - Cable Tie:
Nylon
Length - Cable Tie:
11.30";Resists=Weather, UV"
Design - Cable Tie:
Standard
Tensile Strength - Cable Tie:
40 lb.
Color - Cable Tie:
Black
Design:
Standard
Metal Detectable:
No
Cable Tie Duty:
Intermediate
Tool Code:
E
UL Type:
2
Thickness:
0.04";Approximate Length - Cable Tie=11""
Locking Style:
Stainless Steel Barb
Width - Cable Tie:
0.14";Temp. Range=-76 Degrees to 185 Degrees F"
Basic Material:
Nylon
Approximate Length:
11";Standards=UL 62275 (Type 2, 21), CSA, CE, RoHS"
Flame Retardant:
No
Max. Temp. Rating:
185 Degrees F
Outdoor Use:
Yes
Min. Temp. Rating:
-76 Degrees F
Cable Tie Properties:
Halogen-Free, Low-Smoke, Plenum Rated, UV Light Resistant, Weather Resistant
Recommended Tool:
376V35, 52ZJ96, 62PX63, Mfr. No. PTS
Plenum Rated:
Yes
Actual Length:
11.3 in
Number of Straps:
1
Nominal Max. Bundle Dia.:
3 in
For Use With:
GTS-E, GS2B-E, PTS, PPTS, STS2
Products By Industry:
Transportation
Product Name:
Dome-Top Cable Tie
Product Type:
Cable Tying
Product Material:
Nylon 6.6
Minimum Loop Tensile Strength:
40 lb
Environmentally Friendly:
Yes
Product Color:
Black
Product Line:
Dome-Top
Cable Manager Type:
Cable Tie
Minimum Installation Temperature (°C):
-20
Minimum Installation Temperature (°F):
-4
Environment:
Indoor/Outdoor
Maximum Operating Temperature (°F):
185
Minimum Operating Temperature (°C):
-60
Body Thickness (In.):
0.049
Body Width (mm):
3.6
Overall Length (In.):
11.3
Standards Met:
UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
Maximum Operating Temperature (°C):
85
Minimum Bundle Diameter (In.):
0.03
Resistance Properties:
UV Resistant
Overall Length (mm):
287
Minimum Loop Tensile Strength (lb):
40
Maximum Bundle Diameter (In.):
3
Body Width (In.):
0.141
Minimum Operating Temperature (°F):
-76
Maximum Bundle Diameter (mm):
76
Minimum Loop Tensile Strength (N):
178
Minimum Bundle Diameter (mm):
0.8
Sub Brand:
Dome-Top®
Body Thickness (mm):
1.2
Package Quantity:
1000
