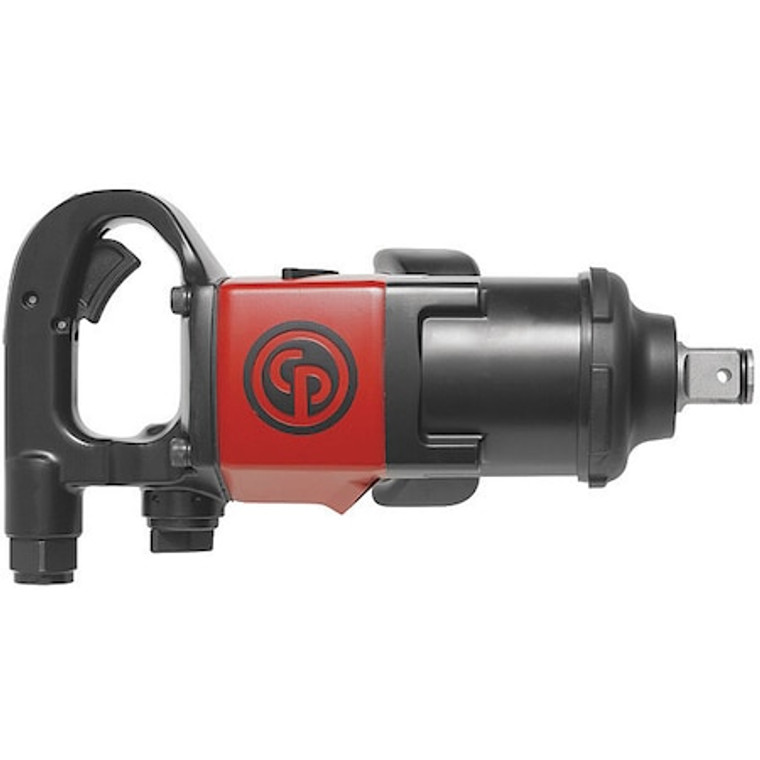

1" D-Handle Air Impact Wrench 1770 ft.-lb. - CP7783

1" D-Handle Air Impact Wrench 1770 ft.-lb. - CP7783

Chicago Pneumatic
SKU:
CP7783
|
UPC:
15451767433
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Impact Wrench, Power Source Air Powered, Air Consumption 41 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/4 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,770 ft-lb, Fastening Torque 1,253 ft-lb, Free Speed 6,200 RPM, Impact Rated Yes, Impact Sound Level 113 dB, Impacts per Minute 500, Number of Speed Settings 3, Power to Weight Ratio 95.7 ft-lb/lb, Max. Bolt Capacity 1 1/4 in
Additional Information
Country of Origin:
Taiwan, Province of China
Item:
Impact Wrench
Square Drive Size:
1";Free Speed=6,200 RPM"
Air Inlet:
1/2 in NPT
Handle Type:
D-Handle
Max. Torque:
1770 ft.-lb.
Retainer Type - Air Impacts:
Ring
Includes:
Hex Key, Rubber Bumper
Retainer Type:
Friction Ring, Through Hole
Required Pressure:
90 psi
Anvil Length - Air Impacts:
1.250";Anvil=Standard"
Style:
D-Handle
Air Inlet Size - Air Tools:
3/8 NPT"
Item - Air Impact Wrenches:
Air Impact Wrench
Average CFM @ 15 Second Run Time:
10.00
Housing Material:
Aluminum
Body Style - Air Tools:
D-Handle
Tool Weight:
18.5 lb
Max. Bolt Capacity:
1 1/4 in
Torque Range:
413 to 1253 ft.-lb.
Anvil Type - Air Impacts:
Standard
Features:
Four Positions For D-Handle Placement To Provide Ultimate Operator Comfort, Rubber Bumper Protecting Both Applications & Tool (Included), Shock Absorbing
Duty Cycle - Air Tools:
General Duty
Handle Material:
Aluminum
Overall Length:
13 3/4 in
CFM @ Full Load:
40.5
Drive Size - Air Tools:
1 Square"
Duty:
General
Min. Hose Size:
3/4 in
Exhaust Location:
Bottom
Impact Rated:
Yes
Power to Weight Ratio:
95.7 ft-lb/lb
Drive Size:
1 in Square
Built-In Light:
No
Max. Air Pressure:
90 psi
Impacts per Minute:
500
Air Pressure:
90 psi
Impact Sound Level:
113 dB
Drive Type:
Standard
Power Source:
Air Powered
Vibration Level:
15.1 m/sq sec
Air Consumption:
41 cfm
Clutch Style:
Rocking Dog
Duty Rating:
General Duty
Min. Air Pressure:
90 psi
Fastening Torque:
1,253 ft-lb
Breakaway Torque:
1,770 ft-lb
Tool Style:
Compact
Standards:
EN ISO 11148-6
Number of Speed Settings:
3
Package Quantity:
1
