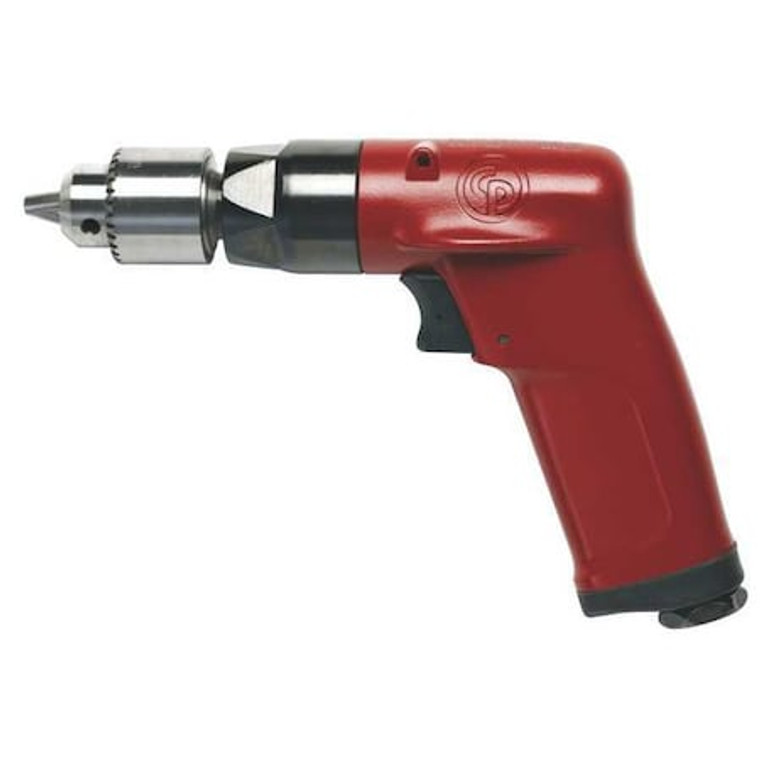

1/4" Pistol Air Drill 2400 rpm - CP1014P24

1/4" Pistol Air Drill 2400 rpm - CP1014P24

Chicago Pneumatic
SKU:
CP1014P24
|
UPC:
15451695378
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 1/4 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 2,400 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 0.85 to 3.40 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 4.70, CFM @ Full Load 19.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing, Housing Material Aluminum
Additional Information
Country of Origin:
Taiwan, Province of China
Item:
Drill
HP:
0.50
HP - Air Tools:
0.50
Chuck Size - Air Drills:
1/4 in
CFM @ Full Load:
19.0
Air Inlet:
1/4 in
Drill Chuck Type - Air Drills:
Keyed
Reversing:
No
Min. Hose Size:
3/8 in
Required Pressure:
90 psi
Free Speed:
2,400 RPM
Overall Length:
6 3/4 in
Duty Cycle - Air Tools:
Industrial Duty
Torque:
0.85 to 3.40 ft-lb
Bearings:
Ball Bearing
Housing Material:
Aluminum
Tool Weight:
1.2 lb
Gear Train:
Planetary
Chuck Size:
1/4 in
Throttle Type:
Trigger
Body Style - Air Tools:
Pistol
Style:
Pistol
Duty:
Industrial
Drill Chuck Type:
Keyed
Air Inlet Size - Air Tools:
1/4 in NPT
Variable Speed:
Yes
Average CFM @ 15 Second Run Time:
4.70
Includes:
Chuck Key
Item - Air Drills:
Air Drill
Handle Material:
Aluminum
Handle Type:
Pistol Grip
Application:
Drilling, Reaming Holes
Overall Width:
3 in
Overall Height:
6 7/8 in
Torque Range:
0 ft-lb to 3.4 ft-lb
Drilling Capacity in Aluminum:
3/8 in
Air Consumption:
19 cfm
Horsepower:
0.5 hp
Min. Torque:
0 ft-lb
Max. Torque:
3.4 ft-lb
Exhaust Location:
Handle
Vibration Level:
2.5 m/sq sec
Bearing Design:
Ball
Power Source:
Air-Powered
Drilling Capacity in Cast Iron:
1/8 in
Spindle Thread Size:
3/8-24"
Chuck Material:
Metal
Reversible:
No
Air Pressure:
90 psi
Noise Level:
78 dB
Drilling Capacity in Steel:
1/8 in
Duty Rating:
Industrial Duty
Package Quantity:
1
