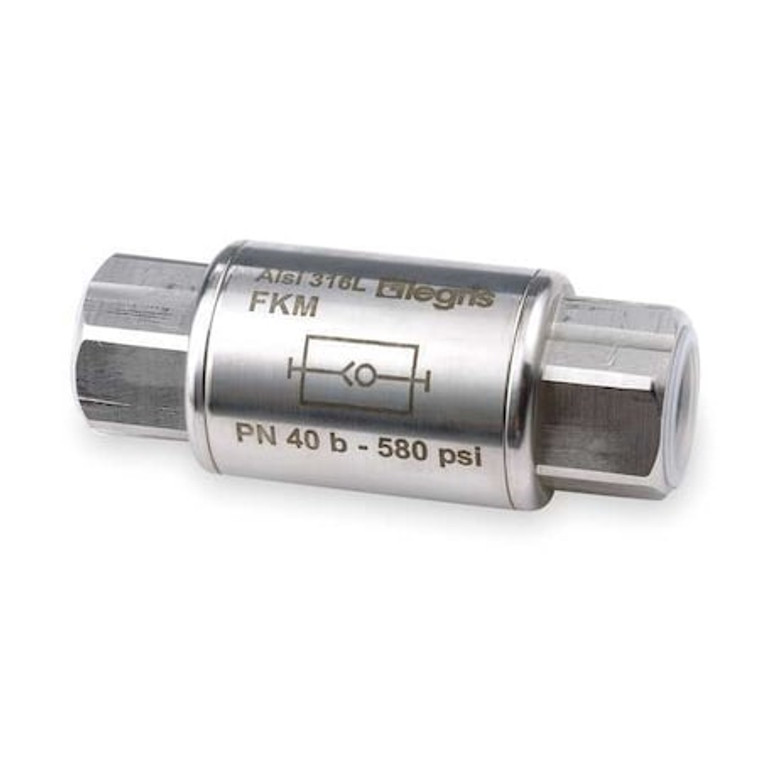

1/4" FNPT Stainless Steel Spring Check Valve PK2 - 4895 14 14

1/4" FNPT Stainless Steel Spring Check Valve PK2 - 4895 14 14

Legris
SKU:
4895 14 14
|
UPC:
820099300597
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves 316 Stainless Steel, Pipe or Tube Size 1/4 in, Connection Type FNPT x FNPT, Cracking Pressure 3.6 psi, Mounting Orientation Horizontal, Vertical, Seal Material FKM, Max. Temp. - Valves 356 Degrees F, Min. Temp. - Valves -4 Degrees F, Max. Water Pressure - Valves 580 psi, Max. Steam Pressure - Valves Not Rated, Seat Material FKM, Spring Material 302 Stainless Steel
Additional Information
Country of Origin:
Italy
Pipe Size:
1/4";Hex Size=Not Applicable"
Connection Type:
FNPT x FNPT
Connection:
FNPT
Body Material:
316L Stainless Steel
Max. Water Pressure - Valves:
580 psi
Spring Material - Check Valves:
302 Stainless Steel
Min. Temp. - Valves:
-4 Degrees F
Pipe or Tube Size - Check Valves:
1/4";Seal Material - Check Valves=FKM"
Full Flow - Valves:
Yes
Sub-Category:
Stainless Steel
Connection Type - Check Valves:
FNPT x FNPT
Cracking Pressure:
3.600 psi
Width:
0.87";Size=1/4""
Body Material - Valves:
316 Stainless Steel
Material of Construction:
316L Stainless Steel
Standards:
RoHS Compliant
Item:
Spring Check Valve
Mechanism and Body Design:
Inline Spring
Flow Design:
Single
Mounting Orientation - Check Valves:
Horizontal, Vertical
Seat Material - Check Valves:
FKM
Cracking Pressure - Check Valves:
3.600 psi
Item - Check Valves:
Check Valve
Length:
2.12";Application - Valves=General Purpose"
Max. Steam Pressure - Valves:
Not Rated
Max. Temp.:
356 Degrees F
Max. Temp. - Valves:
356 Degrees F
Max. Pressure:
580 psi
Flow:
Not Applicable
Overall Length:
2.13 in
Spring Material:
302 Stainless Steel
Seal Material:
FKM
Seat Material:
FKM
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1/4 in
Maximum Pressure - Operating:
580 psi
Operating Temperature - Minimum:
-4 Degrees F
NSF Certifications for Food and Drinking Water:
Not Applicable
ANSI Flange Class:
Not Applicable
Valve Body Style:
Inline
Vacuum Service Rating:
Not Rated
Connection Type - Side 1:
NPT
Silent Check:
Standard
Includes Counterweight:
No Counterweight
Check Mechanism:
Swing
Connection Type - Side 2:
NPT
Connection Gender - Side 1:
Female
Coefficient of Volume (Cv):
Not Applicable
Connection Size - Side 2:
1/4 in
Connection Size - Side 1:
1/4 in
Average Surface Roughness (Ra):
Not Applicable
Operating Temperature - Maximum:
356 Degrees F
For Media:
Fluids
Maximum Pressure - Steam:
Not Rated
Nominal Valve Size:
1/4 in
3-A Standard Compliance:
Not Rated
Connection Gender - Side 2:
Female
Check Mechanism Material:
302 Stainless Steel
Package Quantity:
2
