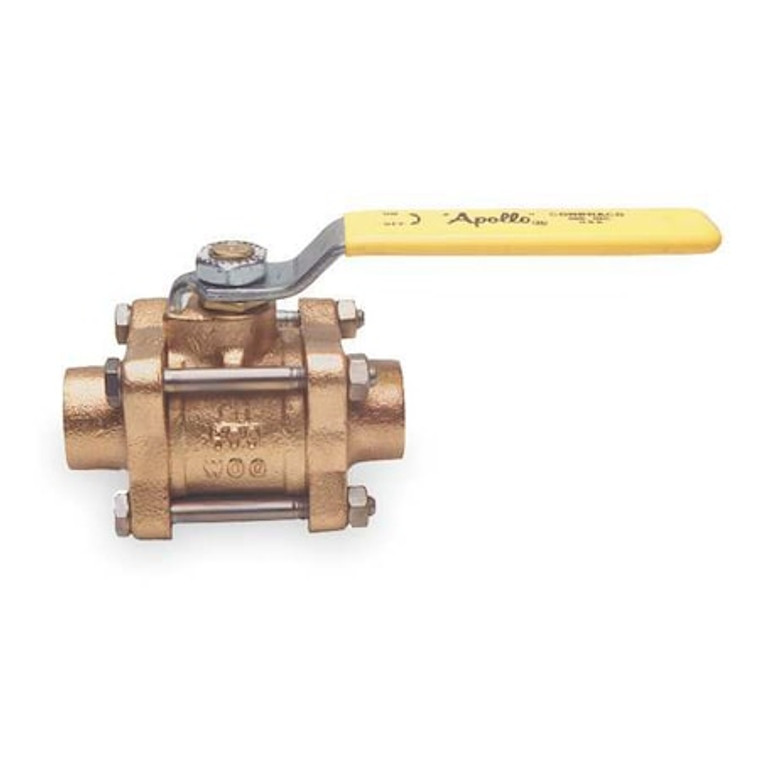

1/2" Sweat Bronze Ball Valve Inline - 8220301

1/2" Sweat Bronze Ball Valve Inline - 8220301

Apollo Valves
SKU:
8220301
|
UPC:
670750727030
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Three-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
Additional Information
Country of Origin:
United States
Pipe Size:
1/2";Body Material=Bronze"
Body Style:
Inline
Tube Size:
1/2";Handle Material=Zinc Plated Steel with Vinyl Grip"
Standards:
MSS-SP-110
Compliance:
ISO 9001
Handle Type:
Lever
Item:
Ball Valve
Ball Material:
Chrome Plated Bronze
Port:
Full
Max. Steam Pressure:
150 PSI WSP
Connection Type:
Sweat x Sweat
Stem Material:
Brass
Stem Type:
Blowout Proof
Seat Material:
RPTFE
Features:
In-Line Repairable
Body Seal Material:
RPTFE
Temp. Range:
-20 Degrees to 450 Degrees F
Ball Valve Product Group:
Manual
Max. Pressure:
600 psi CWP
Ball Valve Basic Body Material:
Bronze
Valve Structure:
3-Piece
Seal Material:
PTFE
Overall Length:
6.27 in
Type:
Three Piece
Connection:
Solder
Sub-Category:
Bronze Ball Valves
Material of Construction:
Bronze
Connection Type - Side 2:
Sweat
Valve Ways:
2-Way
Nominal Valve Size:
1/2 in
Cleaned and Bagged:
Not Cleaned and Bagged
Color - Valve Handle:
Yellow
Manufacturer Warranty:
5 yr
Valve Construction:
Three-Piece
Connection Gender - Side 2:
Female
Connection Size - Side 2:
1/2 in
For Media:
Steam
Maximum Pressure - Operating:
600 psi
Operating Temperature - Minimum:
-20 Degrees F
Connection Type - Side 1:
Sweat
Coefficient of Volume (Cv):
0.01
Connection Size - Side 1:
1/2 in
Connection Gender - Side 1:
Female
Color - Valve Body:
Bronze
Vented Ball Valve:
Not Applicable
Included Mounting:
Not Applicable
Valve Body Style:
Straight
Maximum Pressure - Steam:
150 psi
Pipe Schedule Compatibility:
Not Applicable
Handle - Locking:
Non-Locking
3-A Standard Compliance:
Not Rated
Average Surface Roughness (Ra):
Not Applicable
Operating Temperature - Maximum:
450 Degrees F
ANSI Flange Class:
Not Applicable
Vacuum Service Rating:
29 in Hg
Maximum Pressure - Combustible Gas:
Not Rated
Handle Length:
4.87 in
Ball Port Style:
Full Port
Package Quantity:
1
