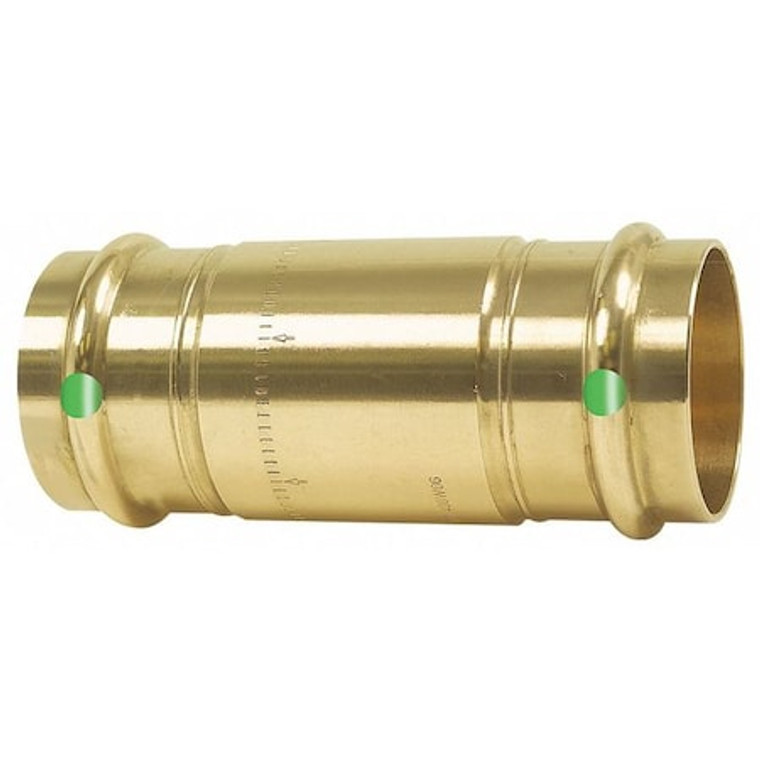

1-1/2" X 1-1/2" Press Low Lead Bronze Spring Check Valve - 79055

1-1/2" X 1-1/2" Press Low Lead Bronze Spring Check Valve - 79055

Viega
SKU:
79055
|
UPC:
691514790558
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Bronze, Pipe or Tube Size 1 1/2 in, Connection Type Press x Press, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 200 Degrees F, Min. Temp. - Valves 0 Degrees F, Max. Water Pressure - Valves 200 psi @ 200 Degrees F, Max. Steam Pressure - Valves Not Rated, Spring Material Stainless Steel, Full Flow - Valves No
Additional Information
Country of Origin:
Germany
Pipe Size:
1 1/2";Hex Size=Not Applicable"
Connection Type:
Press x Press
Connection:
P x P
Body Material:
Bronze
Flow Design:
Single
Min. Temp. - Valves:
0 Degrees F
Length:
2";Max. Water Pressure - Valves=200 psi @ 200 Degrees F"
Seal Material:
EPDM
Standards:
ABS
Item - Check Valves:
Check Valve
Compliance:
ABS
Max. Temp. - Valves:
200 Degrees F
Application - Valves:
General Purpose
Material of Construction:
Bronze
Item:
Spring Check Valve
Sub-Category:
Bronze
Mechanism and Body Design:
Inline Spring
Body Material - Valves:
Bronze
Max. Water Pressure:
200 psi
Cracking Pressure - Check Valves:
0.5 psi
Pipe or Tube Size - Check Valves:
1 1/2 in
Full Flow - Valves:
No
Max. Pressure:
200 psi
Max. Steam Pressure - Valves:
Not Rated
Spring Material - Check Valves:
Stainless Steel
Size:
1 1/2";Mounting Orientation - Check Valves=Horizontal, Vertical"
Connection Type - Check Valves:
Press x Press
Cracking Pressure:
0.5 psi
Seal Material - Check Valves:
EPDM
Overall Length:
4.92 in
Spring Material:
Stainless Steel
Flow:
138 gpm
Temp. Range:
0 Degrees F to 250 Degrees F
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1 1/2 in
Features:
Smart Connect
ANSI Flange Class:
Not Applicable
Silent Check:
Silent
For Media:
Potable Water
3-A Standard Compliance:
Not Rated
NSF Certifications for Food and Drinking Water:
NSF 61
Includes Counterweight:
No Counterweight
Maximum Pressure - Steam:
Not Rated
Operating Temperature - Maximum:
200 Degrees F
Nominal Valve Size:
1 1/2 in
Connection Type - Side 2:
Press
Maximum Pressure - Operating:
200 psi
Operating Temperature - Minimum:
0 Degrees F
Connection Size - Side 1:
1 1/2 in
Connection Size - Side 2:
1 1/2 in
Check Mechanism Material:
Stainless Steel
Valve Body Style:
Inline
Average Surface Roughness (Ra):
Not Applicable
Connection Type - Side 1:
Press
Vacuum Service Rating:
Not Rated
Package Quantity:
1
