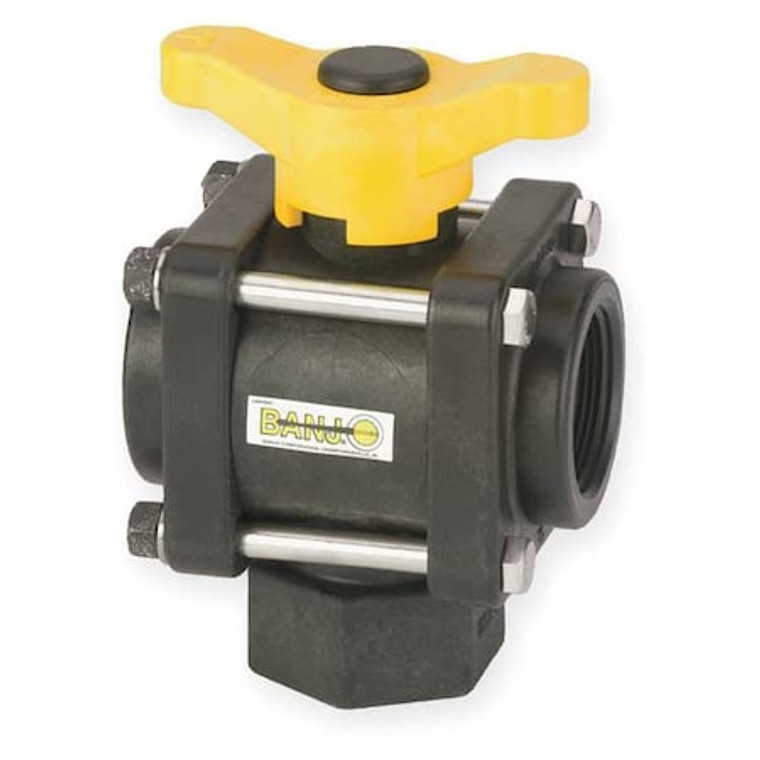

1-1/2" FNPT Polypropylene Ball Valve 3-Way, Body Style: Inline - V150BL

1-1/2" FNPT Polypropylene Ball Valve 3-Way, Body Style: Inline - V150BL

Banjo
SKU:
V150BL
|
UPC:
791206021905
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Manual Three-Way Ball Valve, Body Material Polypropylene, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Full Port, Nominal Valve Size 1 1/2 in, Inlet Connection Size 1 1/2 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Bottom, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 1 1/2 in, Outlet Connection Gender - Side 1 Female
Additional Information
Country of Origin:
United States
Pipe Size:
1 1/2";Body Material=Polypropylene"
Body Style:
Inline
Connection Type:
FNPT x FNPT
Handle Material:
Polypropylene
Seat Material:
PTFE
Item:
Ball Valve
Handle Type:
Lever
Standards:
RoHS Compliant
Port:
Full
Temp. Range:
0 Degrees to 150 Degrees F
Ball Valve Product Group:
Manual
Stem Type:
Self-Lubricating
Body Seal Material:
EPDM
Valve Structure:
1-Piece
Stem Material:
Polypropylene
Ball Valve Basic Body Material:
Plastic
Max. Pressure:
150 psi CWP
Ball Material:
Polypropylene
Seal Material:
FKM
Overall Length:
4.16 in
Type:
Three Piece, Three Way
Special Features:
Not Applicable
Connection:
FNPT
Sub-Category:
Synthetic Ball Valves
Material of Construction:
Polypropylene
Outlet Connection Type - Side 1:
NPT
Handle Height:
3.43 in
ANSI Flange Class:
Not Applicable
Maximum Pressure - Steam:
Not Rated
Vented Ball Valve:
Non-Vented
Outlet Connection Size - Side 2:
1 1/2 in
Inlet Connection Height:
3.13 in
Maximum Pressure - Operating:
225 psi
Operating Temperature - Maximum:
150 Degrees F
Ball Port Style:
Full Port
Outlet Connection Gender - Side 1:
Female
Inlet Connection Gender:
Female
Average Surface Roughness (Ra):
Not Applicable
Valve Construction:
Three-Piece
Inlet Connection Entry:
Bottom
Coefficient of Volume (Cv):
Not Available
Inlet Connection Size:
1 1/2 in
Operating Temperature - Minimum:
0 Degrees F
Maximum Pressure - Combustible Gas:
Not Rated
Outlet Connection Type - Side 2:
NPT
For Media:
Water
Inlet Connection Type:
NPT
3-A Standard Compliance:
Not Rated
Nominal Valve Size:
1 1/2 in
Color - Valve Handle:
Yellow
Valve Ways:
3-Way
Pipe Schedule Compatibility:
Not Applicable
Outlet Connection Gender - Side 2:
Female
Handle - Locking:
Non-Locking
Flow Pattern:
L Flow
Vacuum Service Rating:
Not Available
Outlet Connection Size - Side 1:
1 1/2 in
Included Mounting:
Not Applicable
Package Quantity:
1
